S3C2440 Mini VGA Board V2

1. 제품명

S3C2440 Mini VGA Board V2

2. 제품소개
ARM9 Core를 내장한 삼성(Samsung)전자의 S3C2440 MCU를 탑재 하였고
1024x768@70Hz VGA conversion board 를 포함하고 있습니다. Windows CE 5.0, CE 6.0 BSP 소스 및
Linux 2.6.13 커널의 전체 BSP소스 코드를 포함 하고 있고 모든 장치 드라이버 소스 또한 포함 되어 있습니다.

3. 제품사양

Core Board specification
CPU	Samsung S3C2440 400MHz(ARM920T core, Up to 532MHz)
SDRAM	64Mbyte SDRAM, 32bits Data Bus width 100MHz Clock
Flash	128Mbyte Nand Flash 2Mbyte Nor Flash(BIOS installed)
LCD	1024x768@70Hz VGA conversion board
USB Port	USB 1.1 Host 1 Port, Device 1 Port
Audio	1 Stereo audio out, 1 Mic In
LAN	10M/100M Ethernet interface 1 Port (RJ-45 interface) DM9000
SD/MMC	SD card interface and holder
Camera	20 Pin camera Interface(Camera module은 별도판매.)
Wi-Fi	USB Wi-Fi 모듈 별도 판매
UART	1 RS232 serial port, 3 serial ports available through 14pin (2.0mm space) interface
JTAG	Standard 20Pin JTAG interface
Buttons	4 Test buttons
LED	4 Status LEDs
I2C bus	AT24C08
AD input	AD input test
Audio	Stereo Audio out, Microphone In, PWM Beep
RTC	RTC (battery backed)
Expansion	34pin GPIO expansion connector 44 pin System bus expansion connector
Power Supply	+5V DC
Dimensions	120x100 mm

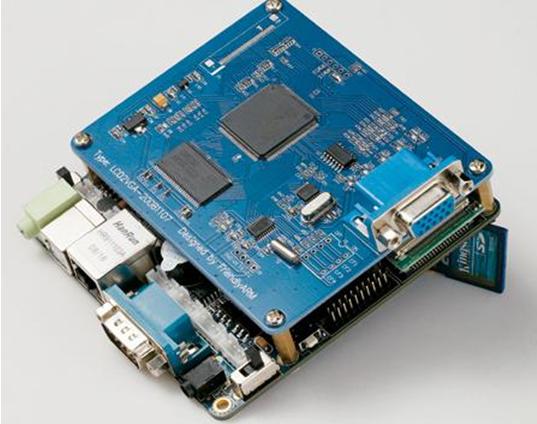

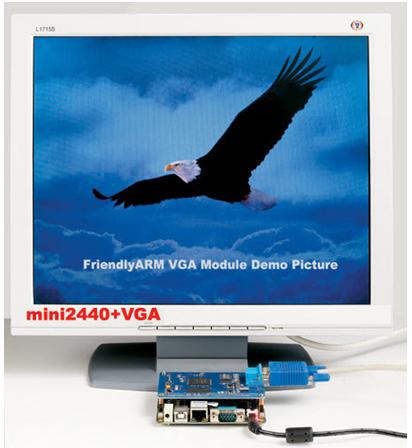

* About 1024x768@70Hz VGA conversion board
- FPGA + SDRAM-based programs to achieve, by the FPGA to control the clock, the field
  scanning, it definitely does not flash
- Linux, Wince 5.0, uCos2 test source code
- You need to know:?
  We do not use DA converter chips, but according to the required VGA display timing, the
  use of FPGA + SDRAM way, this can make full use of 2410 / 2440 itself has a function of
  the LCD Controller to achieve greater output resolution. VGA extension because in fact,
  borrowed from the 2440's LCD controller functions, so it is the driver how to set up
  these registers, which is an ordinary TFT LCD drivers are similar.?

* VGA driver source code of the location in the system :?
- Linux Kernel
  kernel-2.6.13/arch/arm/mach-s3c2410/mach-qq2440.c in the keyword
  "VGA1024768" part of the set, which in the past, as well as the core of the kernel mini2440 had existed for a long time .

- Win CE 5.0 BSP
  smdk2440/inc/s2440.h in the keyword "LCD_TYPE_VGA1024x768" part of the set.

- uCos2 OS
  uCos2/S3C2440/source/lcd.c in the keyword "LCD_TYPE_VGA1024x768" part of the set.

- Firmware Bare-metal test code
  2440test/src/LCD_VGA_1024x768.c

* Software feature

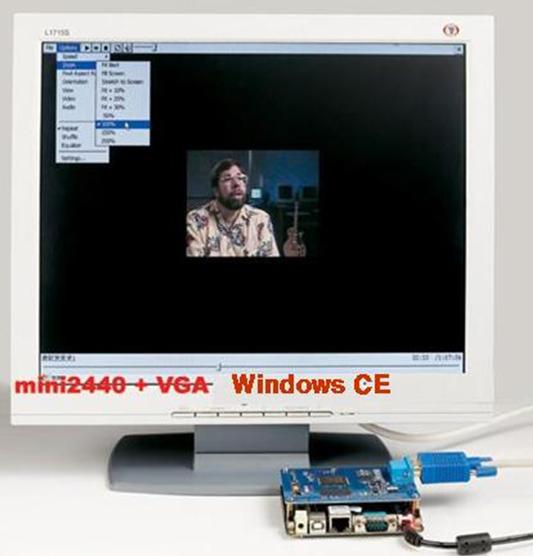

Windows CE 5.0 and 6.0 System
Boot	Nboot, Eboot
Driver support	1. Display driver 2. Audio driver 3. Ethernet Driver, USB WIFI Driver(Install file) 4. USB Slave, Host driver 5. RTC (Real Time Clock) driver 6. NandFlash driver 7. Serial driver 8. EINT driver 9. LED driver 10. SD/MMC driver

Linux 2.6.13
Kernel	Linux kernel 2.6.13 ROM/CRAM/EXT2/FAT32/NFS file system YAFFS file system
Driver support	1. System Interrupt & Timer driver 2. Serial device driver 3. Block memory device driver 4. Flash memory device driver 5. Ethernet device driver 6. RTC (Real Time Clock) Driver 7. USB Host driver 8. USB Slave 9. LEDS, Buttons Driver 10. Many Country Language Support 11. LCD & Touch driver 12. MMC/SD card driver 13. Audio driver 14. USB HID(Mouse, Keyboard) driver 15. Camera driver(V9650 1.3M)

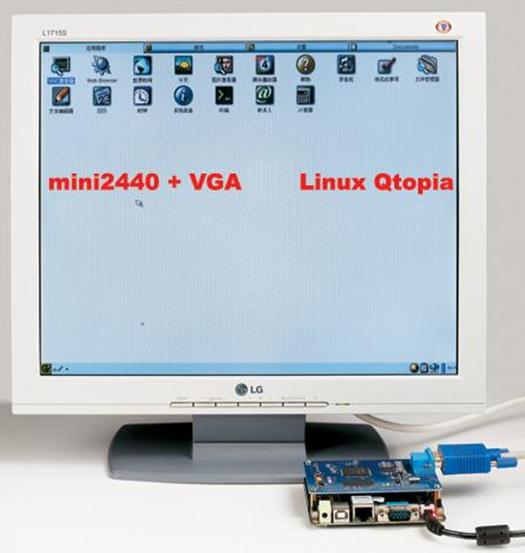

GUI	QT/EMBEDDED

DVD #1 Directory contents
DataSheet	제품에서 사용된 모든 칩의 데이터 시트
Firmware	개발보드 펌 웨어 소스 LCD, Camera, Key, RTC, LED 등
Images	Linux, CE 5.0, uCOS2, BootLoader Binary
Linux	Linux example
linux source	Linux BSP 소스
LinuxPDFBooks	Linux Device Driver EBOOK
Manual	보드 사용자 매뉴얼
Manual Video	CE 5.0, Linux, QTopia 등 포팅 동영상 매뉴얼
OpenSourceBootloader	Boot Loader 소스
Photo Mini2440	제품 이미지 사진
Schematic	개발보드 회로도
uCos2	uCos2 포팅 소스
Windows Tools	DNW, Image2Hex, USB Driver 등 윈도 도구 들
WindowsCE 5.0 BSP	CE 5.0 BSP 소스
WindowsCE 6.0 BSP	CE 6.0 BSP 소스
WindowsCE Wireless Driver	802.11b/g USB Wi-Fi module CE Driver

4. Accessaries
(1) OV9650 1.3 mega pixels CMOS camera module.
(2) VIA VT6656 802.11b/g USB Wi-Fi module.
(3) Debugger( ARM7, ARM9, Cortex-M3용) 지원 : H-JTAG USB (별도구매)

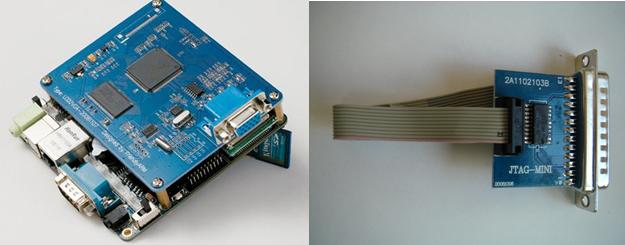

5. 제품 구성

(1) Parallel Wiggler Emulator (Work with H-JTAG Proxy Server, Support RDI Interface)
   병렬 포트를 통해서 Flash Write를 할 수 있는 JTAG Adapter 입니다.
   디버깅은 되지 않습니다.
(2) S3C2440 VGA
(3) Serial Cable
(4) RJ-45 Cable( LAN Cable )
(5) USB Cable( AB Type )
(6) 5V Power Adapter
(7) 소스 및 회로도, 데이터시트 DVD ROM
