OMAP3530-NEON(Cortex-A8) 개발보드

1. 제품명

OMAP3530-NEON(Cortex-A8) 개발보드

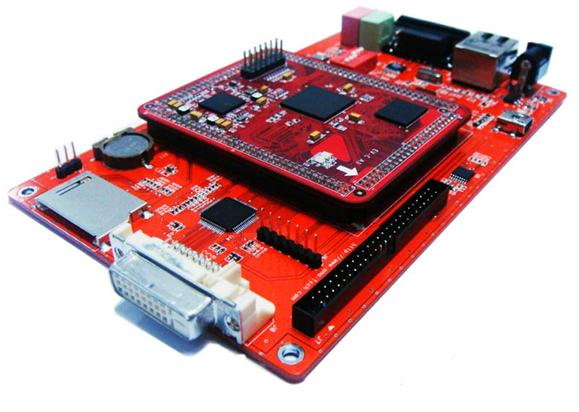

2. 제품소개

이 제품은 TI사의 Cortex-A8 코어를 기반으로 한 OMAP3530 프로세서를 탑재하였고 128MByte DDR RAM과
128MByte NAND Flash를 내장 하고 있습니다. 보드는 Core Board 와 Backplane Board 구조로 되어 있어
사용자는 Core Board 와 Backplane Board를 따로 사용 할 수 있습니다. Backplane 보드는 DVI-D/S-Video,
Serial Port, Ethernet Port, Audio, SD/MMC 등의 다양한 인터페이스를 지원 합니다.

제품 구매 : http://www.toolparts.co.kr

3. 제품사양

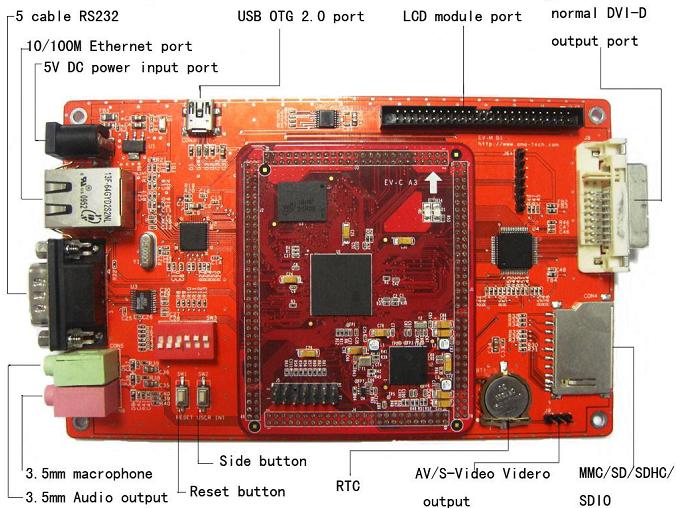

Hardware Features
CPU	600MHz ARM Cortex™-A8 core NEON™ SIMD co-processing 430MHz TMS320C64x+ DSP POWERVR SG™ 2D/3D graphics acceleration
SRAM	1Gbit(128MByte) DDR @166MHz
Flash	1Gbit(128MByte) SLC NAND Flash
JTAG	14Pin 1.8V JTAG
Outlet	DC +5V Power Input
Power Switch	Power On/Off toggle Switch
Audio Jack	Stereo audio input and output
Network Interface	Standard RJ45 10/100M Ethernet interface
User Input	Reset button,? 4 * 4 matrix scan keyboard
Display Interface	Digital video DVI-D
Analog out	Composite video interface, S-VIDEO interface( 3Pin Header )
DIP Switch	A DIP switch to set the boot device order
USB Interface	1x USB 2.0 high speed OTG（Device option
Serial Port	1 standard RS232-type socket
SD / SDIO / SDHC	SD / SDIO / SDHC Card sockets
Key	1 x Reset, 1 x User Keys
Extension Pin	LCD expansion port

Windows CE driver support ( 6.0 )
Boot	Version	X-Load-1.42, Eboot
	Boot	Support boot from Ethernet, SD or NandFlash to start the WinCE
	OS upgrade	Support update the image from Ethernet and SD card
System characteristic	Kernel Characteristic	KITL kernel debugging, Reboot, Watchdog, RTC
	Driver	Display driver (DVI, TFT LCD), SD card, keyboard, McSPI, McBSP, Audio, Ethernet, USB OTG
	System function	Power management (backlight driver, battery driver, sleep/awake mode) HIVE register support, ROM file system support
	Software characteristic	Media play 9.0, word editor, Internet explorer 6.0, .NET Compact Framework 3.5

Linux 2.6.29
Boot	Version	X-Load-1.42, U-Boot 2009.06-svn14
	Boot	Support boot from Ethernet, SD or NandFlash to start the linux system
	OS upgrade	Support update the image from Ethernet and SD card
Kernel and Driver	Version	Linux 2.6.29
	File system format	ROM/CRAM/EXT2/EXT3/FAT/NFS/JFFS2/UBIFS
	Driver support	Serial, RTC, NET, NAND, LCD, Touch Screen, MMD/SD, USB OTG, DVI, Keypad,

3. 제품특징

(1) 디바이스 인터페이스

OMAP3530 main frequency 600MHz, CortexA8 with Neon SIMD co-process,
430MHz TM320C64x + DSP co-process, POWERVR SG 2D/3D accelerator

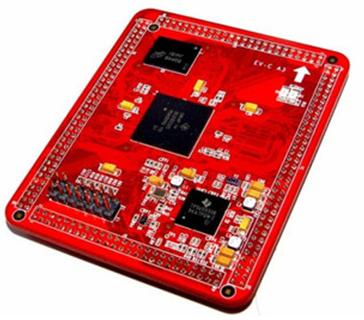

(2) Core Board

DVD #1 Directory contents
Documents	개발보드 사용자 매뉴얼(영문) 주요 부품의 데이터 시트
Hardware	Datasheet	주요 부품의 데이터 시트
	Schematic	개발보드 회로도
Linux	Source	리눅스 BSP 소스
	Demo	Android, Angstrom 데모 이미지
	Tools	VMWare 6.5 Linux image
Windows CE	BSP	CE 6.0 BSP 소스
	Image	CE binary

4. 제품 구성
(1) One OMAP3530-NEON development board
(2) One 4.3 터치 LCD
(3) One DC +5V power adapter
(4) One RS232 serial cable
(5) One USB2.0 Mini B to USB2.0 A type converter
(6) Software CD-ROM
