S3C6410 Multi Core 개발보드 + 4.3인치 터치 LCD

1. 제품명

S3C6410 Multi Core 개발보드 + 4.3인치 터치 LCD



2. 제품소개
ARM11 Core를 내장한 삼성(Samsung)전자의 S3C6410 MCU를 탑재 하였고 4.3인치 터치
LCD(최대 800x480)를 포함하고 있습니다. 코어 모듈과 베이스 보드가 분리된 형태로 탑재
가능한 코어보드로 S3C6410, S3C2450, S3C2416 코어가 가능 합니다. Windows CE 6.0 BSP
소스 및 Linux2.6.28 커널의 전체 BSP소스 코드를 포함 하고 있고 모든 장치 드라이버 소스
또한 포함 되어 있습니다. TV OUT, 카메라인터페이스, Wi-Fi(모듈기본내장)등의 다양한
인터페이스를 지원하고 있습니다. 또한 전체 회로도(PDF)와 PADS PCB 심볼을 제공합니다.

제품 구매 : http://www.toolparts.co.kr

3. 제품사양

Hardware Features
CPU	Samsung S3C6410 (ARM1176JZF-S up to 667MHz)
DDR SDRAM	Samsung K4X51163PC 133MHz, 128Mbyte mobile DDR SDRAM 32bits Data Bus width
Flash	Samsung K2F2G08 256Mbyte NAND Flash
Power Supply	3.3V, 5V
Layer	8-layer, layout full account of EMC / EMI rules
Test Point	Built-in test points
Board Temperature	-10 to +70 ℃
Storage Temperature	-20 to +80 ℃
Board size	52.0mm x 45.0mm x2.8mm (Length*Width*Thickness)
Pin to Pin Space	1.0mm
Stamp Hole	0.8mm x 0.6mm
Pin Number	(J1+J2) x 50 + (J3+J4) x 42, total 184 pins

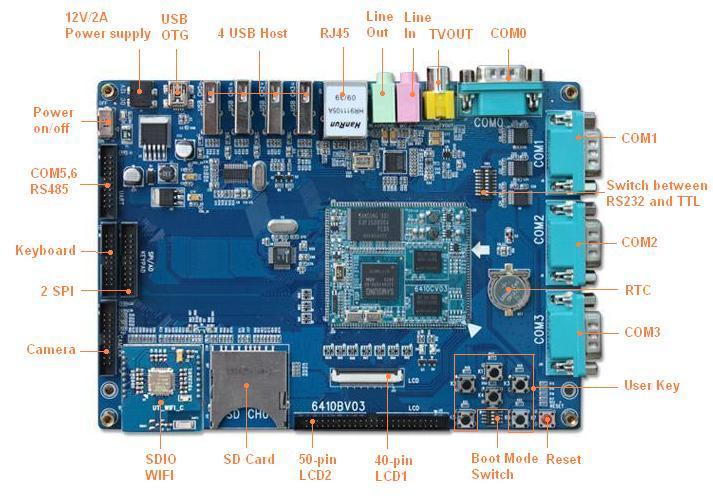

Hardware Features - Base Board
CPU	Samsung S3C6410 (ARM1176JZF-S up to 667MHz) 기본 탑재 Samsung S3C2416, Samsung S3C2450 코어 모듈 탑재 가능
USB	2.0 Full Speed 12Mbps USB Host * 4 2.0 High Speed 480Mbps USB OTG * 1
UART	6 serial ports (Two are five-wire RS-232 DB9 interface, another two are three-wire TTL serial port led out from a 20-pin expansion connector)
LCD	4.3 inch TFT LCD
Wi-Fi	SDIO Wi-Fi 기본 탑재
GPIO	50-Pin GPIO connector ,50-Pin data and address BUS connector
Audio	One audio input interface (3.5mm audio jack) One 2-channel audio output interface (3.5mm audio jack)
Ethernet	One 10/100M Ethernet interface (RJ45)
SD/MMC	SD/MMC interface (supports 3.3V and 1.8V logic voltage)
Camera	Two camera interfaces (30-pin FPC connector, support CCD or CMOS camera)
JTAG	One 20-pin JTAG interface, one 10-pin CPLD JTAG interface
Buttons	Eight buttons (Reset, Boot, User defined, On/Off)
TV-OUT	One TV-OUT
Power Supply	+12V
Board size	carrier board-200mm x 140mm

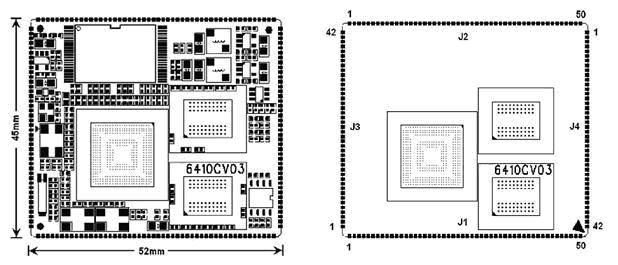

* Core Board

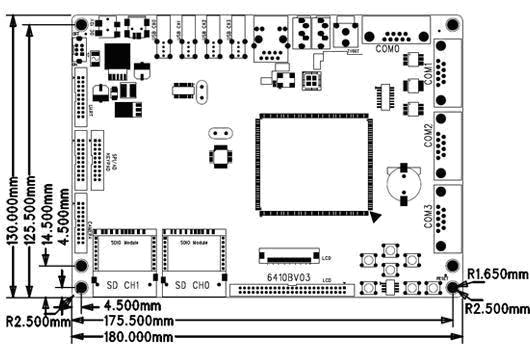

* Base Board



* Software feature

WinCE6.0 System
Boot	Stepldr	Providing Source code and STEPLDR.bin
	Eboot	Providing Source code and EBOOT.bin Eboot main functions:  1. Ethernet download: Set static IP, HDCP gets Dynamic    IP, Mac address setting, download kernel    automatically by Ethernet when the system starts. 2. USB download: update the image via USB OTG 2.0 3. Format Nand Flash 4. Format BinFS 5. Low-level Format 6. Set boot-up delayed time Booting process bar
	OS upgrade	Support updating image from SD card
System characteristic	Kernel characteristic	KITL kernel debug, Reboot, Watchdog, RTC
	Driver	1. 4.3”, 7”Display driver (DVI, TFT LCD) 2. SD card, High speed SD Card driver 3. SPI driver 4. AC97 driver 5. Camera driver 6. Ethernet driver 7. USB OTG driver 8. Serial Ports driver 9. RTC driver 10. WIFI driver 11. MFC encode/decode driver 12. GPIO driver
	System function	1. Power management(sleep/awake mode) 2. Backlight driver 3. Battery driver 4. HIVE registery support 5. ROM file system support
	Software characteristic	Media play 9.0, word editor, Internet explorer 6.0, .NET Compact Framework 3.5

Linux 2.6.28
Bootloader	Sdboot	1. SD Card boot-up and download Image via USB    (can replace JTAG) 2. Replace booting LOGO
	OS upgrade	Support updating image from SD card
	u-boot	u-boot-1.1.6 Main functions: 1.Supporting Nand Flash erase/write/read 2.Supporting USB download Image 3.Supporting print, set, save Environment Variables 4.Supporting bootm, bootargs setting
Kernel and drivers	Version	Linux 2.6.28
	File system Format	ROM/CRAM/EXT2/EXT3/FAT/NFS/JFFS2/UBIFS
	Drivers	1. Serial ports driver 2. RTC driver 3. Ethernet driver 4. 4.3” and 7” LCD touch driver 5. MMC/SD, HSMMC(High speed MMC) driver 6. USB Host driver 7. USB Device driver(USB Keyboard, Mouse) 8. LEDs driver 9. AC97 dirver 10. Camera driver 11. Nand Flash driver 12. JPEG, MFC encode/decode driver 13. TVOUT dirver 14. OpenGLES1.1 & 2.0 15. IIS, SPI driver
File System	File System	Yaffs File System
	Function	Provided Lib (ALSA -lib, tslib, glibc), udev support
Embedded GUI	Qt/Embedded	Qtopia 2.2.0
Network protocol & application	Application	H.264 display, MPEG-4 display, H.263 display, VC-1 display, 4-windows display, Camera preview & MFC encoding, decoding preview Camera input and JPEG encoding, decoding display MFC decoding & Camera preview thru TV, H.264 decoding thru TVOUT
Cross compiler Environment		3.3.2 , 3.4.1 , 4.2.2-eabi

Android 1.5
Boot	U-boot 1.1.6 Boot Android from SD card or NAND Flash Support updating image from SD card or USB
File System	Yaffs2 (Androidfs-sdk-m5-rc15)
LCD	Sharp 4.3” and 7” LCD including Touch Screen Driver
Drivers	리눅스에서 지원하는 드라이버 안드로이드의 커널과 드라이버 모델은 리눅스 모델을 그대로 차용
Software	Android-1.5 cupcake GUI(Support file browser, Media player ) 기타 리눅스에서 지원하는 일반 소프트웨어

DVD #1 Directory contents
Datasheet	개발보드에서 사용된 주요 부품에 대한 데이터시트
Linux	- linux-2.6.24   커널소스 및 zimage, filesystem - Android 1.5 cupcake 소스
Manual	영문 버전의 보드 사용자 매뉴얼, Linux 포팅 매뉴얼, CE 설치 가이드 및 포팅 매뉴얼, 애플리케이션 개발 예제 매뉴얼
Schemetec	회로도
WINCE6.0	CE 6.0 BSP 소스, CE OS 이미지, SDK, 예제 Application
WindowsTools	SDboot, 삼성 USB Bulk Driver, Activesync USB Driver Giveio 패러럴 플래쉬프로그래머, DNW

4. 제품 구성
(1) One ARM11 SBC, Base Board
(2) One 4.3” LCD (Including Touch panel)
(3) One Serial cable (IDC10-to-DB9)
(4) One 12V/2A Power adapter
(5) One USB cable (AB Type )
(6) One Cross Ethernet cable
(7) Two Manual, Source DVD
