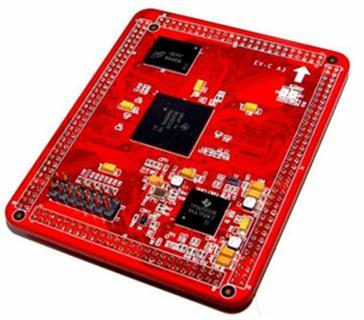

OMAP3530-NEON(Cortex-A8) 코어모듈

1. 제품명

OMAP3530-NEON(Cortex-A8) 코어모듈



2. 제품소개

이 제품은 TI사의 Cortex-A8 코어를 기반으로 한 OMAP3530 프로세서를 탑재하였고 128MByte DDR RAM과 128MByte
NAND Flash를 내장 하고 있습니다.

제품 구매 : http://www.toolparts.co.kr

3. 제품사양

Hardware Features
CPU	600MHz ARM Cortex™-A8 core NEON™ SIMD co-processing 430MHz TMS320C64x+ DSP POWERVR SG™ 2D/3D graphics acceleration
SRAM	1Gbit(128MByte) DDR @166MHz
Flash	1Gbit(128MByte) SLC NAND Flash
JTAG	14Pin 1.8V JTAG
Dimension	65mm * 80mm( Width * Height )
Pin pitch	2.0 mm pitch

Windows CE driver support ( 6.0 )
Boot	Version	X-Load-1.42, Eboot
	Boot	Support boot from Ethernet, SD or NandFlash to start the WinCE
	OS upgrade	Support update the image from Ethernet and SD card
System characteristic	Kernel Characteristic	KITL kernel debugging, Reboot, Watchdog, RTC
	Driver	Display driver (DVI, TFT LCD), SD card, keyboard, McSPI, McBSP, Audio, Ethernet, USB OTG
	System function	Power management (backlight driver, battery driver, sleep/awake mode) HIVE register support, ROM file system support
	Software characteristic	Media play 9.0, word editor, Internet explorer 6.0, .NET Compact Framework 3.5

Linux 2.6.29
Boot	Version	X-Load-1.42, U-Boot 2009.06-svn14
	Boot	Support boot from Ethernet, SD or NandFlash to start the linux system
	OS upgrade	Support update the image from Ethernet and SD card
Kernel and Driver	Version	Linux 2.6.29
	File system format	ROM/CRAM/EXT2/EXT3/FAT/NFS/JFFS2/UBIFS
	Driver support	Serial, RTC, NET, NAND, LCD, Touch Screen, MMD/SD, USB OTG, DVI, Keypad,

3. 제품특징

(1) Dimension

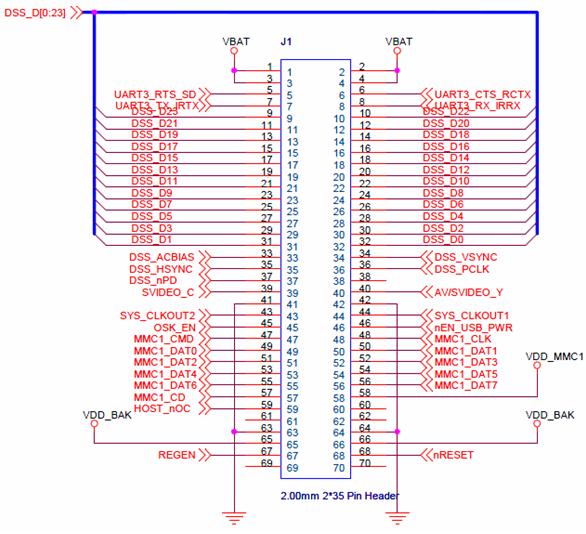

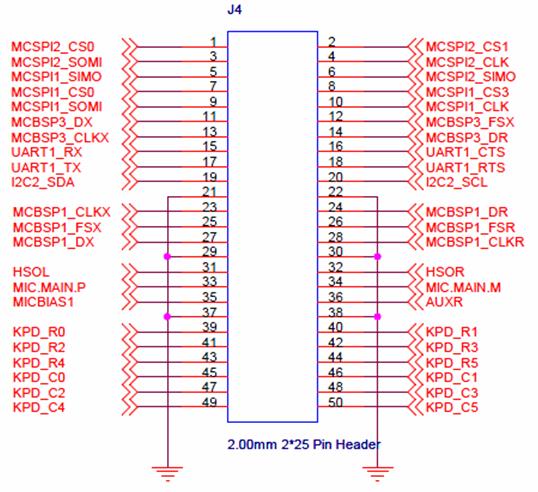

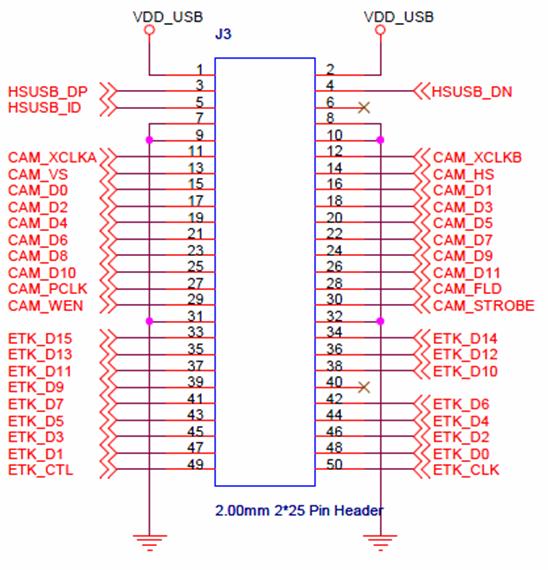

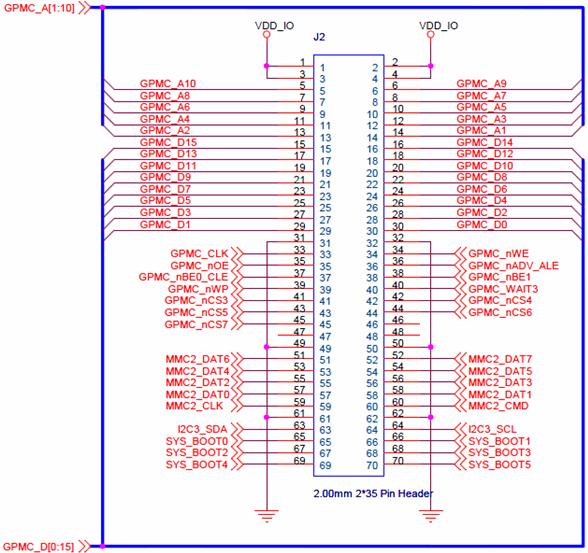

(2) 코어모듈 핀 배치도

DVD #1 Directory contents
Documents	개발보드 사용자 매뉴얼(영문) 주요 부품의 데이터 시트
Hardware	Datasheet	주요 부품의 데이터 시트
	Schematic	개발보드 회로도
Linux	Source	리눅스 BSP 소스
	Demo	Android, Angstrom 데모 이미지
	Tools	VMWare 6.5 Linux image
Windows CE	BSP	CE 6.0 BSP 소스
	Image	CE binary

4. 제품 구성
(1) One OMAP3530-NEON CPU 모듈
(2) Software CD-ROM
