FT232RL

1. 제품명

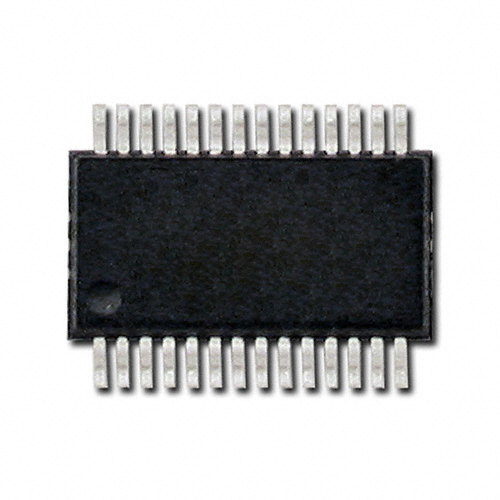

FT232RL



2. 제품소개

TTL레벨의 마이컴 신호를 MAX3232등을 사용하지 않고고 PC의 USB포트를 통해서
가상으로 COM포트를 구현할 수 있는 대표적인 칩셋 입니다. FT232시리즈의 SOP타입



3. 제품특징

• FT232RL 데이터시트 다운로드
• FT232 USB 드라이버 다운로드
  - Windows XP/Server2003/VTSTA/7/2008(32, 64bit) (Download)
  - Linux driver (32, 64bit) (Download)
  - Windows CE(ARM,X86등) 5.0 (Download)
  - Windows CE(ARM,X86등) 6.0 (Download)
  - Max OS8 & 9 driver (Download)


• Single chip USB to asynchronous serial data transfer interface.

• Entire USB protocol handled on the chip - No USB-specific firmware programming required.

• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.

• Fully assisted hardware or X-On / X-Off software handshaking.

• Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).

• FTDI’s royalty-free VCP and D2XX drivers eliminate the requirement for USB driver development in most cases.

• In-built support for event characters and line break condition.

• New USB FTDIChip-ID™ feature.

• New configurable CBUS I/O pins.

• Auto transmit buffer control for RS485 applications.

• Transmit and receive LED drive signals.

• New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or FPGA.

• FIFO receive and transmit buffers for high data throughput.

• Adjustable receive buffer timeout.

• Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes.

• New CBUS bit bang mode option.
• Integrated 1024 Bit internal EEPROM for storing USB VID, PID, serial number and product description strings, and CBUS I/O configuration.

• Device supplied preprogrammed with unique USB serial number.

• Support for USB suspend and resume.

• Support for bus powered, self powered, and high-power bus powered USB configurations.

• Integrated 3.3V level converter for USB I/O .

• Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.

• True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.

• High I/O pin output drive option.

• Integrated USB resistors.

• Integrated power-on-reset circuit.

• Fully integrated clock - no external crystal, oscillator, or resonator required.

• Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.

• UART signal inversion option.

• USB bulk transfer mode.

• 3.3V to 5.25V Single Supply Operation.

• Low operating and USB suspend current.

• Low USB bandwidth consumption.

• UHCI / OHCI / EHCI host controller compatible

• USB 2.0 Full Speed compatible.

• -40°C to 85°C extended operating temperature range.

• Available in compact Pb-free 28 Pin SSOP and QFN-32 packages (both RoHS compliant).
