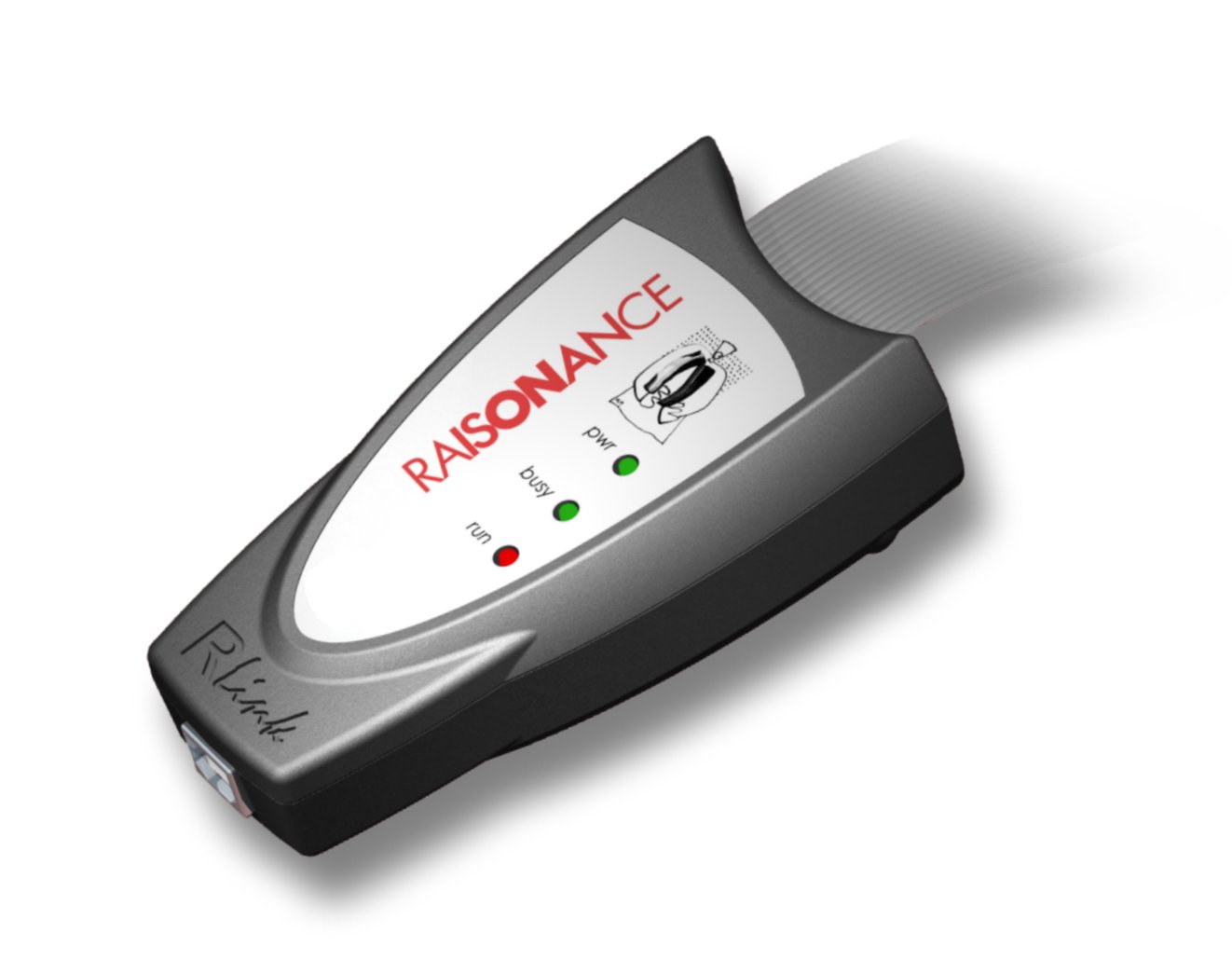

RLink Standard

1. 제품명

RLink Standard



2. 제품소개
RLink 는 STR7(ARM7), STR9(ARM9), uPSD(8051) and Cortex-M3(STM32)를 위한
In-Circuit Debugger & Programmer 입니다. Raisonance's Integrated Environment(RIDE) 환경에서 사용 가능 합니다.

제품 구매 : http://www.toolparts.co.kr

3. 제품특징
* Dynamically programmable: possible addition of new protocols without changing the hardware nor the firmware but only the software
* Up to 2 Mbit/s, from 3V to 5V
* Flexible software architecture (supports also various 8 bit cores)
* No power supply needed. RLink is powered through the USB connection
* Cost effective solution
* Full programming without any limitation
* Full debugging up to 32KB debugging

4. 메뉴얼
RLink 사용자 메뉴얼

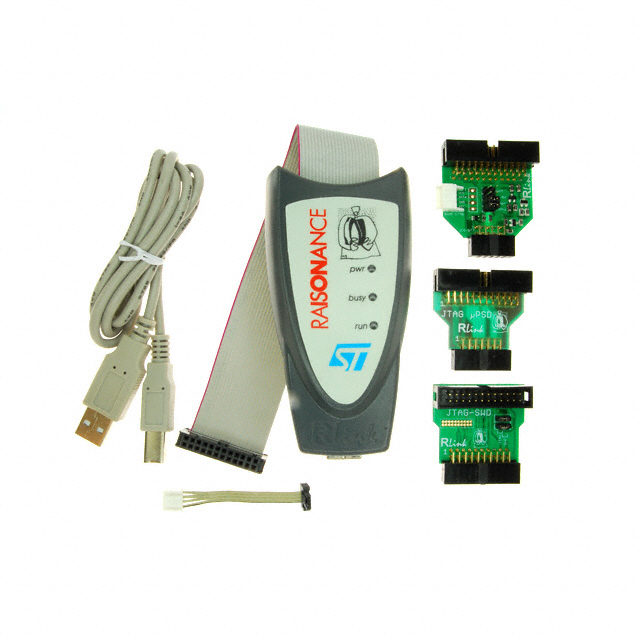

5. 제품 구성
(1) RLink Standard 1Ea
(2) USB Cable 1Ea
(3) USB Driver/Software, CD
   The CD includes:
   * RKit-ARM (STR7, STR9 & STM32) software tools (GNU C Compiler, GNU assembler, GNU Linker and Raisonance Simulator/Debugger)
   * Ride7 (new Raisonance Integrated Development Environment) drives RLink and integrates the different software tools for STRx, STM32
   * RFlasher: stand-alone programming tool that drives RLink
