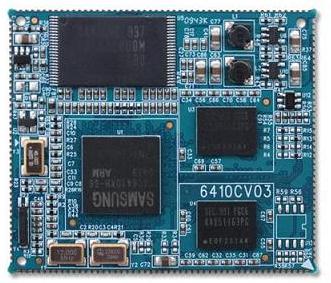

S3C6410 Core Board - SMD Type

1. 제품명

S3C6410 Core Board - SMD Type



2. 제품소개
ARM11 Core를 내장한 삼성(Samsung)전자의 S3C6410 MCU를 탑재 하였고 Windows CE 6.0 BSP
소스 및 Linux 2.6.24 커널의 전체 BSP소스 코드를 포함 하고 있고 회로도와 PADS PCB 심볼을
제공합니다

제품 구매 : http://www.toolparts.co.kr

3. 제품사양

Hardware Features
CPU	Samsung S3C6410 (ARM1176JZF-S up to 667MHz)
DDR SDRAM	Samsung K4X51163PC 133MHz, 128Mbyte mobile DDR SDRAM 32bits Data Bus width
Flash	256KB internal Flash memory
Flash	Samsung K2F2G08 256Mbyte NAND Flash
Power Supply	3.3V, 5V
Layer	8-layer, layout full account of EMC / EMI rules

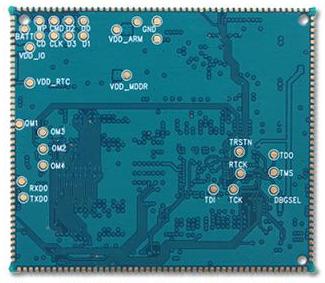

Test Point	Built-in test points
Board Temperature	-10 to +70 ℃
Storage Temperature	-20 to +80 ℃
Board size	52.0mm x 45.0mm x2.8mm (Length*Width*Thickness)

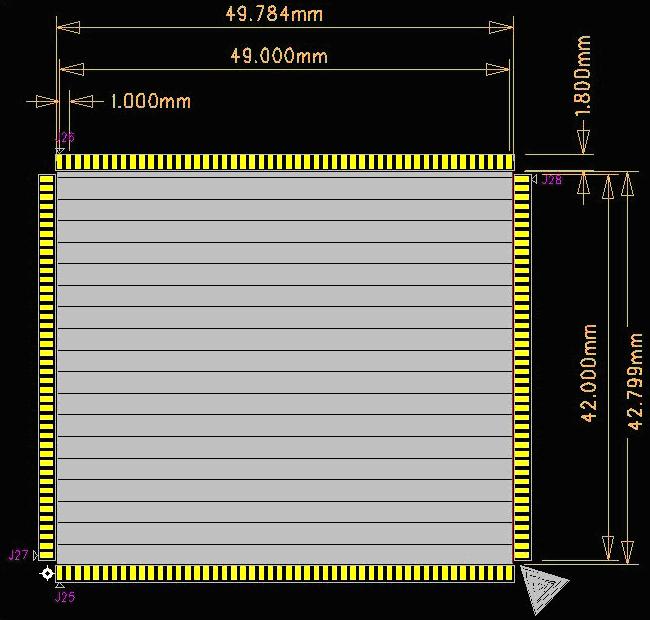

Pin to Pin Space	1.0mm
Stamp Hole	0.8mm x 0.6mm
Pin Number	(J1+J2) x 50 + (J3+J4) x 42, total 184 pins

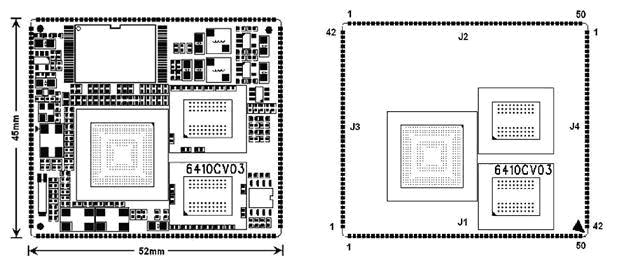

* 제품 사이즈

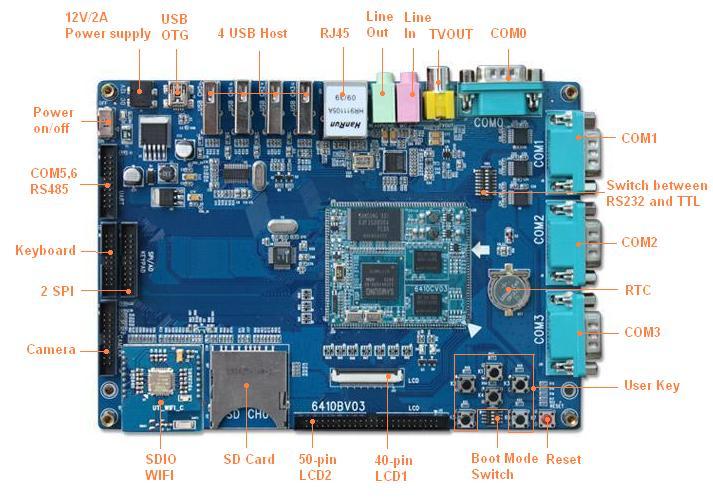

* S3C6410 Multi Core 개발보드에 탑재한 그림



* Software feature

WinCE6.0 System
Boot	Stepldr	Providing Source code and STEPLDR.bin
	Eboot	Providing Source code and EBOOT.bin Eboot main functions:  1. Ethernet download: Set static IP, HDCP gets Dynamic    IP, Mac address setting, download kernel    automatically by Ethernet when the system starts. 2. USB download: update the image via USB OTG 2.0 3. Format Nand Flash 4. Format BinFS 5. Low-level Format 6. Set boot-up delayed time Booting process bar
	OS upgrade	Support updating image from SD card
System characteristic	Kernel characteristic	KITL kernel debug, Reboot, Watchdog, RTC
	Driver	1. 4.3”, 7”Display driver (DVI, TFT LCD) 2. SD card, High speed SD Card driver 3. SPI driver 4. AC97 driver 5. Camera driver 6. Ethernet driver 7. USB OTG driver 8. Serial Ports driver 9. RTC driver 10. WIFI driver 11. MFC encode/decode driver 12. GPIO driver
	System function	1. Power management(sleep/awake mode) 2. Backlight driver 3. Battery driver 4. HIVE registery support 5. ROM file system support
	Software characteristic	Media play 9.0, word editor, Internet explorer 6.0, .NET Compact Framework 3.5

Linux 2.6.28
Bootloader	Sdboot	1. SD Card boot-up and download Image via USB    (can replace JTAG) 2. Replace booting LOGO
	OS upgrade	Support updating image from SD card
	u-boot	u-boot-1.1.6 Main functions: 1.Supporting Nand Flash erase/write/read 2.Supporting USB download Image 3.Supporting print, set, save Environment Variables 4.Supporting bootm, bootargs setting
Kernel and drivers	Version	Linux 2.6.28
	File system Format	ROM/CRAM/EXT2/EXT3/FAT/NFS/JFFS2/UBIFS
	Drivers	1. Serial ports driver 2. RTC driver 3. Ethernet driver 4. 4.3” and 7” LCD touch driver 5. MMC/SD, HSMMC(High speed MMC) driver 6. USB Host driver 7. USB Device driver(USB Keyboard, Mouse) 8. LEDs driver 9. AC97 dirver 10. Camera driver 11. Nand Flash driver 12. JPEG, MFC encode/decode driver 13. TVOUT dirver 14. OpenGLES1.1 & 2.0 15. IIS, SPI driver
File System	File System	Yaffs File System
	Function	Provided Lib (ALSA -lib, tslib, glibc), udev support
Embedded GUI	Qt/Embedded	Qtopia 2.2.0
Network protocol & application	Application	H.264 display, MPEG-4 display, H.263 display, VC-1 display, 4-windows display, Camera preview & MFC encoding, decoding preview Camera input and JPEG encoding, decoding display MFC decoding & Camera preview thru TV, H.264 decoding thru TVOUT
Cross compiler Environment		3.3.2 , 3.4.1 , 4.2.2-eabi

Android 1.5
Boot	U-boot 1.1.6 Boot Android from SD card or NAND Flash Support updating image from SD card or USB
File System	Yaffs2 (Androidfs-sdk-m5-rc15)
LCD	Sharp 4.3” and 7” LCD including Touch Screen Driver
Drivers	리눅스에서 지원하는 드라이버 안드로이드의 커널과 드라이버 모델은 리눅스 모델을 그대로 차용
Software	Android-1.5 cupcake GUI(Support file browser, Media player ) 기타 리눅스에서 지원하는 일반 소프트웨어

DVD #1 Directory contents
Datasheet	개발보드에서 사용된 주요 부품에 대한 데이터시트
Linux	- linux-2.6.28   커널소스 및 zimage, filesystem - Android 1.5 cupcake 소스
Manual	영문 버전의 보드 사용자 매뉴얼, Linux 포팅 매뉴얼, CE 설치 가이드 및 포팅 매뉴얼, 애플리케이션 개발 예제 매뉴얼
Schemetec	회로도( PDF 제공 )
WINCE6.0	CE 6.0 BSP 소스, CE OS 이미지, SDK, 예제 Application
WindowsTools	SDboot, 삼성 USB Bulk Driver, Activesync USB Driver Giveio 패러럴 플래쉬프로그래머, DNW

* Pin Definition

	J1 Definition		J2 Definition		J3 Definition		J4 Definition
Pin	Name	Description	Name	Description	Name	Description	Name	Description
1	HSYNC	LCD	KP_COL0	KEYPAD	CANRSTN	CAMERA	VDD5V	POWER
2	VSYNC		KP_COL1		CAMHREF		VDD5V
3	VCLK		KP_COL2		CAMCLK		VDD5V
4	VDEN		KP_COL3		CAMVSYNC		VDD_MDDR
5	VD0		KP_COL4		CAMPCLK		VDD_MDDR
6	VD1		KP_COL5		CAMYD0		VDD_33V
7	VD2		KP_ROW0		CAMYD1		VDD_33V
8	VD3		KP_ROW1		CAMYD2		VDD_ARM
9	VD4		KP_ROW2		CAMYD3		VDD_ARM
10	VD5		KP_ROW3		CAMYD4		VDD_ARM
11	VD6		KP_ROW4		CAMYD5		VDD_ARM
12	VD7		KP_ROW5		CAMYD6		VDD_RTC
13	VD8		EINT4	EXTINT	CAMYD7		GND	GND
14	VD9		EINT9		I2CSDA0	I2C	GND
15	VD10		EINT12		I2CSCL0		GND
16	VD11		EINT1		DATA0	BUS	GND
17	VD12		EINT3		DATA1		GND
18	VD13		EINT5		DATA2		GND
19	VD14		EINT6		DATA3		OM1	BOOT SETTING
20	VD15		EINT8		DATA4		OM3
21	VD16		ADCIN0	ADC	DATA5		OM2
22	VD17		ADCIN1		DATA6		OM4
23	VD18		NBATF	NBATF	DATA7		TXD0	UART
24	VD19		OTGDP	USB OTG USB HOST	DATA8		RTSN0
25	VD20		OTGDM		DATA9		TXD1
26	VD21		VBUS		DATA10		RTSN1
27	VD22		USBDP		DATA11		TXD2
28	VD23		USBDN		DATA12		TXD3
29	PWM_TOUT1		OTGID		DATA13		RXD0
30	EINT11	EXTINT	AC97RSTN	AC97/I2S	DATA14		RXD1
31	DAC_OUT0	DAC	AC97SDI		DATA15		CTSN1
32	GPH9	GPIO	AC97BLCK		WEN		RXD2
33	EINT0	EXTINT	AC97SDO		OWN		RXD3
34	EINT2		AC97SYNC		CSN1		GPH6	GPIO
35	CLK_OUT0	CLKOUT	SD1_D0	SD CH1	IRQ_LAN		GPH7
36	GPQ0	GPIO	SD1_D1		ADDR1		GPH8
37	OTG_VBUS	USBOTG	SD1_D2		ADDR0		GPE0
38	GPO3	GPIO	SD1_D3		ADDR2		GPE1
39	SPICS0	SPI	SD1_CMD		NRESET		GPE3
40	SPIMISO0		SD1_CLK		KEY_RST	KEY_RST
41	SPICLK0		SD1_CDN		PWRRGTON	PWR_EN
42	SPIMOSI0		SD1_WPN		GPO2	GPIO
43	GPC7	GPIO	SD0_D0	SD CH2
44	NLED1		SD0_D1
45	NLED2		SD0_D2
46	GPC6		SD0_D3
47	TSYP	TOUCH	SD0_CMD
48	TSXP		SD0_CLK
49	TSYM		SD0_CDN
50	TSXM		SD0_WPN

5. 제품 구성
(1) One ARM11 SBC
(2) Two Manual, Source DVD
