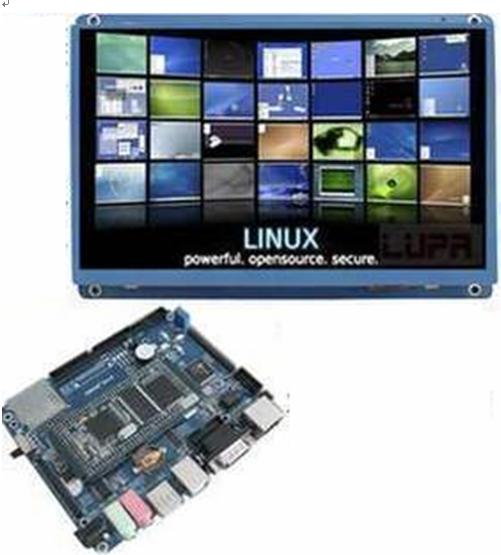

S3C2440 Mini Board Pro + 7인치 터치 LCD
2. 제품소개
S3C2440 Core Board와 Mother Board, 7인치 터치 LCD를 탑재한 개발 보드 입니다. Windows CE 5.0 BSP 소스 및
Linux 2.6.13 커널의 전체 BSP소스 코드를 포함 하고 있습니다. 또한 GPS, Camera, VGA Out, AV, HUB등 다양한 주변
모듈을 가지고 있습니다.
제품 구매 : http://www.toolparts.co.kr
3. 제품사양
| Core Board specification | |
| CPU | Samsung S3C2440A ARM920T core |
| SRAM | 32bit,100MHz, default mounted 64MB SDRAM, it can be replaced into 128MB |
| NAND Flash | Default mounted 64MB, it can be replaced into 128MB to 1GB |
| NOR Flash | 2 Mbytes, bootable. It can be replaced into 8MB |
| Core-Power | 1.25V Kernel Voltage |
| Power | 3.3V power supply for CPU board |
| Connector | DC-2.0mm pitch board-to-board connectors |
| Dimension | 37mmx74mm |
| Mother Board specification | |
| Serial Ports (UARTs) | COM-0 - RS232, five-wire DB9 RS232 serial port COM-1 - RS232, three-wire available via 2mm pitch 3 pins COM-2 - RS232, three-wire available via 2mm pitch 3 pins |
| LCD | The LCD port integrated 4-wire resistor touch screen port. The board comes with driver for 3.5inch,4.3inch, 7inch and 10.4inch TFT LCD (the resolution is 800x600) 제품에는 7인치 터치 TFT LCD(800*480) 가 포함되어 있습니다. |
| Ethernet | Davicom DM9000A MAC & PHY, 10/100BaseT, Activity LED's |
| USB | USB1 Host, 12 Mbps ,USB2 Device,12 Mbps |
| Camera | 2mm pitch 20-pin,130 Mega pixels CMOS camera interface |
| JTAG | One 2.0mm, 10-Pin Jtag interface |
| Keyboard & mouse | USB, keypad is working via USB |
| Audio codec | Adopt UDA1341 Audio chip, Audio input and output slot |
| ADC | Adjustable resistor is connected with pins of ADC to check analog/digital change |
| RTC | Real Time Clock, powered by external lithium battery |
| Buzzer | On-board PWM function test unit |
| Device support | 1 x SD/MMC card socket, Supports Multimedia Card, Secure Digital and Secure Digital I/O communications protocols up to 2GB |
| General Purpose I/O | A 40-pin GPIO Expansion Connector |
| BUS | A 40-pin BUS extended interface |
| LEDs | 4 x Status LEDs |
| Buttons | 4 Programmable User Buttons |

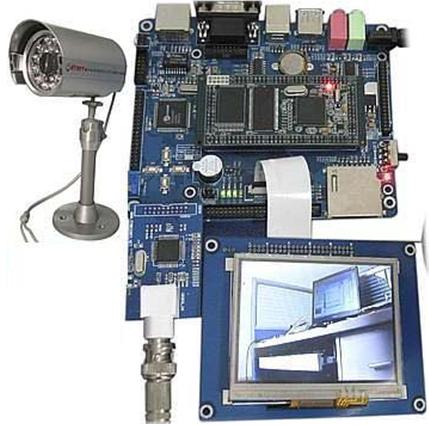

AV Monitor Module |  AV모듈(SAA7113), CCD카메라 구매는 별도문의(master@deviceshop.net) |

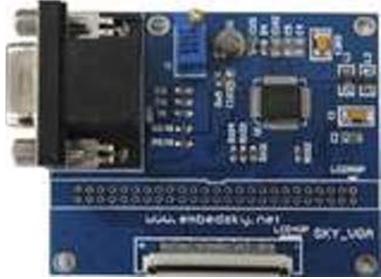

| VGA Out |  VGA Out 구매는 별도문의(master@deviceshop.net) |

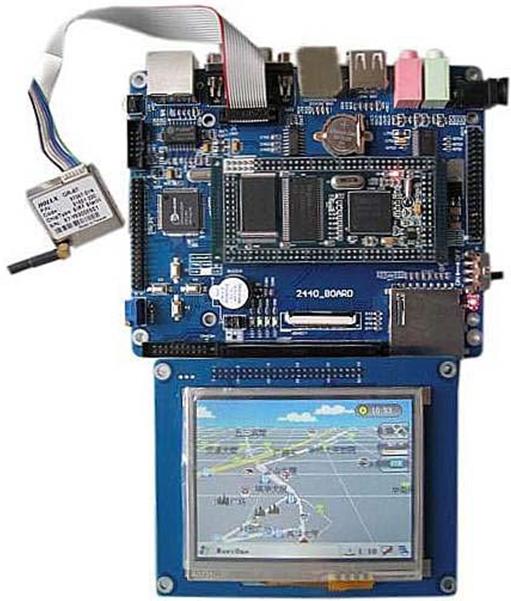

| GPS Module |  GPS 모듈, S/W 구매는 별도문의(master@deviceshop.net) |

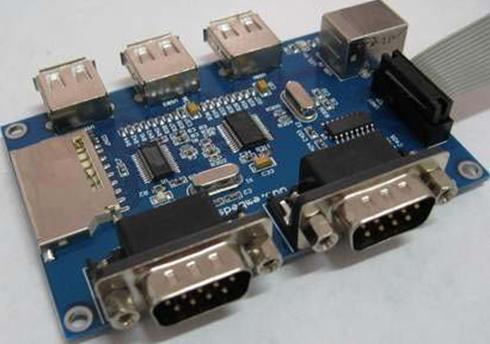

USB HUB Module |  3 x USB Host + 2 x RS232 Serial Port + USB Converted SD Card Module 구매는 별도문의(master@deviceshop.net) |
| Dimension | 105x128mm |

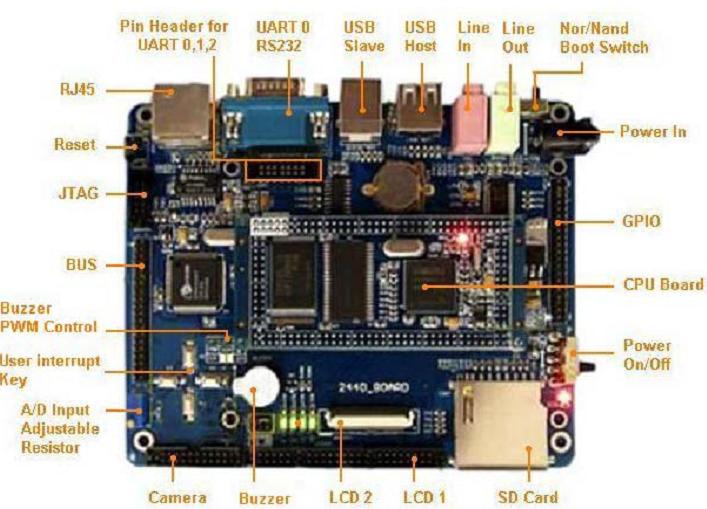

* Mother Board 사양
* CPU Board 사양
4. Software 사양
| Linux drivers support ( 2.6.28 ) | ||
| Boot | Boot | Start up system, version u-boot-1.1.6 |
| Tftp | Support tftp transmitting protocol | |
| File system | Support writing yaffs file system image into Nand flash | |
| Kernel | Support writing kernel image into nand flash and kernel parameter setting | |
| Etc | Support via USB and Serial Interface to download application to flash debug | |
| Kernel | Version | Linux kernel 2.6.25.8 |
| File system | CRAMFS/RAMFS/EXT2/FAT32/NFS/YAFFS/YAFFS2 | |
| Serial device | Three serial ports | |
| 10/100M Ethernet | DM9000 | |
| RTC | RTC driver | |
| USB Host | USB Host ,USB Slave driver | |
| LEDs | Four LEDs driver | |
| Buttons | User buttons | |
| Language | Multi-language Support | |
| LCD | Coming with driver for 3.5inch,4.3inch,7inch and 10.4inch TFT LCD (resolution 800*600) | |
| Touch panel | Touch panel driver | |
| SD/MMC card | SD/MMC card driver | |
| Sound | UDA1341 | |
| CMOS Camera | CMOS Camera driver | |
| USB Camera | The chip of USB Camera is Vimicro 301p, the USB Camera is collecting dynamic picture and showing on the LCD | |
| GUI | Qt/Embedded | Qtopia 1.7.0 and Qtopia 2.2.0 |
| Windows CE ( 5.0 ) | ||
| Boot | Stepldr | Copy Eboot to SDRAM to jump to Eboot |
| Eboot | Ethernet bootloader for wince, support downloading image through USB device port. supporting one Key to update Bootloader, Kernel, Yaffs, NK.bin and one Key to configure parameters of Linux | |
| Driver | Serial device | Three serial ports |
| 10M/100M Ethernet | DM9000 | |
| USB Host | USB Host driver, supporting USB ActiveSync | |
| USB Device | USB Device driver | |
| RTC | Real time keeping | |
| Buttons | User buttons | |
| LCD | Coming with driver for 3.5inch,4.3inch,7inch and 10.4inch TFT LCD (resolution 800x600) | |
| USB Camera | The chip of USB Camera is Vimicro 301p, the USB Camera is collecting dynamic picture and showing on the LCD | |
| USB WIFI | Support Via USB WIFI module | |
| ADC | ADC driver | |
| Touch Screen | Touch Screen driver | |
| Audio | UDA1341 | |
| SD/MMC card | Block devices drivers | |
| Others | Support MediaPlayer, IE browser, saving Register change, MFC ,NET2.0 and so on. | |
| DVD #1 Directory contents | |
| bootloader | u-boot 1.1.6와 ADS 1.2 자체 bootloader |
| Data Sheet | 주요 부품에 대한 모든 데이터 시트 |
| TestProgram | 모든 주변 장치에 대한 Non OS 테스트 프로그램( Firmware) |
| Image | 미리 컴파일 된 모든 S/W에 대한 이미지 |
| Linux | 리눅스 BSP 소스, 크로스 컴파일러 |
| Schematics | PDF회로도, PCB 심볼 |
| uCOS-II | uCOS-II 포팅 소스( ADS 1.2) |
| User Manual | PDF 매뉴얼 |
| WinCE Source | Windows CE 5.0 BSP 소스 |
| Windows Software Package | DNW, H-JTAG 등 Windows tools |
5. Accessaries

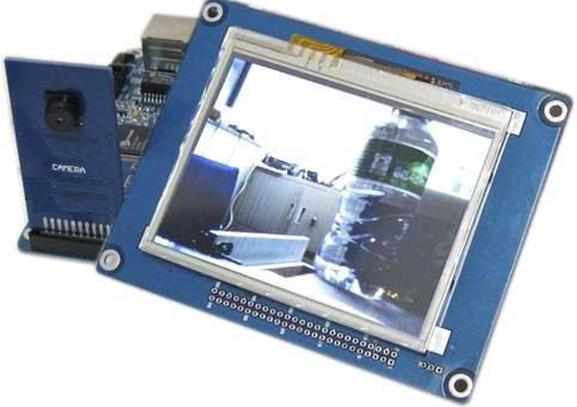

(1) OV9650 1.3 mega pixels CMOS camera module.( Optional )
(2) GPS 모듈 ( Optional )
(3) VGA Out 모듈 ( Optional )
(4) SAA7113 AV Converter 모듈, CCD 카메라 ( Optional )
(5) 2Serial, 4 USB Host, USB SD Slot USB HUB 모듈 ( Optional )
(6) Debugger( ARM7, ARM9, Cortex-M3용) 지원 : H-JTAG USB (별도구매)
6. 제품 구성
(1) One Mini2440 Pro Single board computer ( Core Board, 7인치 터치 LCD 포함 )
(2) One CD-ROM (WinCE 5.0 BSP, Linux BSP, Documents, tools, Schematic Drawing, datasheets)
(3) One Ethernet crossover cable
(4) One Serial Cable
(5) One Wiggler Board ( 패러럴 JTAG Board )
(6) One USB Cable
(7) One 5V/2A DC power supply
(8) One Touch pen
