AT91SAM9263 개발보드 + 3.5인치 터치 LCD
2. 제품소개

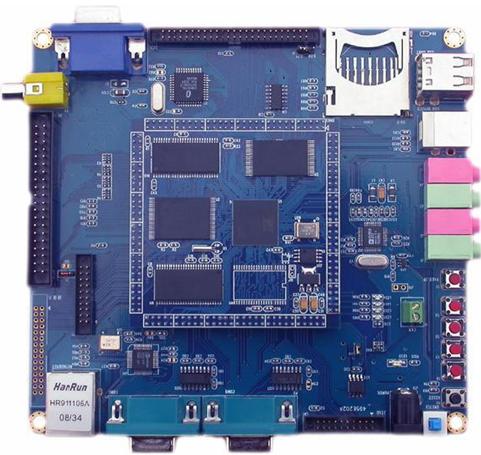

ARM926EJ-S를 기반으로 한 ATMEL ARM9 개발보드로 Core 보드와 Mother 보드가 분리된 형태로 디자인 되었고
VGA OUT, TV OUT, AC97인터페이스와 Microphone입력, 스테레오 라인 입력, 25mW Active 스피커를 갖추고 있어
멀티미디어 개발을 위한 대부분의 사항들을 갖추고 있습니다. 또한 3.5인치 터치 LCD를 포함하고 있고
Windows CE 5.0 BSP 소스 및 Linux 2.6.20 커널의 전체 BSP소스 코드를 포함 하고 있습니다.
제품 구매 : http://www.toolparts.co.kr
3. 제품사양
| Core Board specification | |
| CPU | Atmel 240MHz ARM ARM926EJ-S with DSP Instruction Extentions, |
| RAM | 64 Mbytes |
| SRAM | 1 Mbytes |
| NAND Flash | 128 Mbytes, bootable |
| NOR Flash | 4 Mbytes, bootable |
| EEPROM | EEPROM can connect directly IIC |
| Mother Board specification | |
| Serial Ports (UARTs) | COM-0 - RS232, five-wire RS232 serial port COM-1 - RS232, three-wire RS232 serial port, the baud rate up to 115200bps |
| LCD | Coming with driver for 3.5inch,5/6inch,5.7inch and 8inch TFT LCD, max resolution 1024 x 768/16-bit, power supply with 3.3V/5/5V. 제품에는 3.5인치 터치 TFT LCD(320*240) 가 포함되어 있습니다. |
| Ethernet | Davicom DM9000A MAC & PHY, 10/100BaseT, Activity LED's |
| USB | USB 2.0 Full Speed (12Mbits per second) Host Port USB 2.0 Full Speed (12Mbits per second) Device Port |
| Camera | 2mm pitch 20 pins Camera interface ,the interface also can be made as GPIO to connect with various camera |
| JTAG | 1 X 2mm pitch 20 pins JTAG Port |
| Keyboard & mouse | USB, keypad is working via USB |
| Audio codec | AC97 interface, mono microphone input, stereo line input and 25 mW output for active speakers |
| Touch screen ctrl | A part of the W9712L codec chip. Supports resistive touch panels |
| RTC | Real Time Clock, powered by external lithium battery |
| IDE | 1 x IDE44 pin standard IDE Interface, the interface also can be used as GPIO |
| Device support | 1 x SD/MMC card socket, Supports Multimedia Card, Secure Digital and Secure Digital I/O communications protocols. |
| General Purpose I/O | GPIO Expansion Connector |
| CAN | 1 x CAN2.0 interface |
| VGA Out | Standard VGA display port, the resolution up to 1024 x 768 |
| TV Out | The resolution up to 1024 x 768 |
| LEDs | 4 x Status LEDs |
| Buttons | 1 x Reset Button 4 x User Buttons 1 x PWM Controlled buzzer |
* 개발 Board 사양
4. Software 사양
| Linux drivers support ( 2.6.28 ) | ||
| Boot | Boot | Start up system, version u-boot-1.1.6 |
| Tftp | Support tftp transmitting protocol | |
| File system | Support writing yaffs file system image into Nand flash | |
| Kernel | Support writing kernel image into nand flash and kernel parameter setting | |
| Etc | Support via USB and Serial Interface to download application to flash debug | |
| Kernel | Version | Linux kernel 2.6.20 |
| File system | CRAMFS/RAMFS/EXT2/FAT32/NFS/YAFFS/YAFFS2 | |
| Serial device | Two serial ports | |
| 10/100M Ethernet | DM9000 | |
| RTC | RTC driver | |
| USB Host | USB Host ,USB Slave driver | |
| LEDs | Four LEDs driver | |
| Buttons | User buttons | |
| Language | Multi-language Support | |
| LCD | Coming with driver for 3.5inch,5.6inch,8inch TFT LCD (resolution 800*600) | |
| Touch panel | Touch panel driver | |
| SD/MMC card | SD/MMC card driver | |
| Sound | AC97 Sound Driver | |
| CMOS Camera | CMOS Camera driver | |
| VGA Out | VGA Out ( 1024 * 768 ) | |
| TV Out | TV Out ( 1024 * 768 ) | |
| GUI | Qt/Embedded | Qtopia |
 FTP & Telnet Server  Web Server  Browser & Picture Viewer  Game | ||
| Windows CE ( 5.0 ) | ||
| Boot | Eboot | Eboot Support booting up from NandFlash |
| Driver | Serial device | Two serial ports |
| 10M/100M Ethernet | DM9000 | |
| USB Host | USB Host driver, supporting USB ActiveSync | |
| USB Device | USB Device driver | |
| RTC | Real time keeping | |
| Buttons | User buttons | |
| LCD | Coming with driver for 3.5inch,5.6inch,8inch TFT LCD (resolution 800*600) | |
| TV Out | TV Out Driver ( 1024 * 768 ) | |
| VGA Out | VGA Out Driver ( 1024 * 768 ) | |
| ADC | ADC driver | |
| Touch Screen | Touch Screen driver | |
| Audio | AC97 Driver | |
| SD/MMC cardOthers | Block devices drivers | |
| DVD #1 Directory contents | |
| DataSheet | 주요 부품에 대한 모든 데이터 시트 |
| Hardware | PDF회로도 |
| Linux Demo | 미리 컴파일 된 Linux 이미지 |
| Linux Source Code | 리눅스 BSP 소스, 크로스 컴파일러 |
| Test Project | 모든 주변 장치에 대한 Non OS 테스트 프로그램( Firmware) |
| Tools | DNW, ActiveSync 등 Windows tools |
| User Manual | PDF 매뉴얼 |
| Wince Demo | 미리 컴파일 된 CE 5.0 이미지 |
| Wince Souce Code | CE 5.0 BSP 소스 |
4. Accessaries
(1) Debugger( ARM7, ARM9, Cortex-M3용) 지원 : H-JTAG USB (별도구매)
5. 제품 구성
(1) One AT91SAM9263 Board ( Core Board, 3.5인치 터치 LCD 포함 )
(2) One CD-ROM (WinCE 5.0 BSP, Linux BSP, Documents, tools, Schematic Drawing, datasheets)
(3) One Serial cable (IDC10-to-DB9)
(4) One 5V Power adapter
(5) One USB cable
(6) One Cross Ethernet cable
