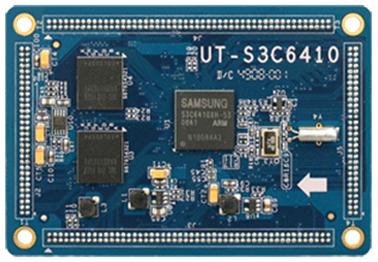

S3C6410 Core Board - DIP Type

1. 제품명

S3C6410 Core Board - DIP Type



2. 제품소개
ARM11 Core를 내장한 삼성(Samsung)전자의 S3C6410 MCU를 탑재 하였고 Windows CE 6.0 BSP
소스 및 Linux 2.6.24 커널의 전체 BSP소스 코드를 포함 하고 있고 회로도와 PADS PCB 심볼을
제공합니다

제품 구매 : http://www.toolparts.co.kr

3. 제품사양

Hardware Features
CPU	Samsung S3C6410 (ARM1176JZF-S up to 667MHz)
DDR SDRAM	Samsung K4X51163PC 133MHz, 128Mbyte mobile DDR SDRAM 32bits Data Bus width
Flash	Samsung K2F2G08 256Mbyte NAND Flash
Power Supply	3.3V, 5V
Board Temperature	-10 to +70 ℃
Storage Temperature	-20 to +80 ℃
Board size	81.2mm x 55.8mm (Length*Width)
Pin to Pin Space	1.27mm
Pin Number	Total 184 pins

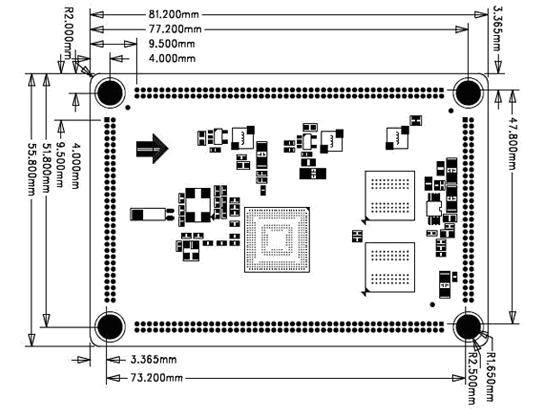

* 제품 사이즈

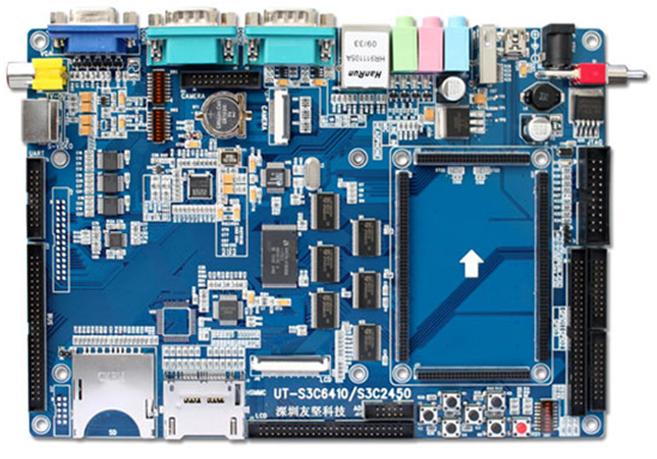

* S3C6410 Core 보드가 탑재 가능한 S3C6410 SDK 개발보드



* Software feature

Windows CE driver support ( 6.0 )
Boot	Start eboot from SD card, do not burn eboot via JTAG Boot WinCE from SD card or NAND Flash Support updating image from SD card or USB
Characteristic	KITL kernel debug, Reboot, Watchdog, RTC
LCD	Sharp ,4.3” and 7” LCD including Touch Screen Driver
Backlight/Battery	Power Management (Backlight Drive, Battery-driven, sleep/wake-up function)
TV OUT	TV OUT Driver
SD CARD	SD card, High speed SD card driver
Audio	AC97 driver
LAN, USB	Ethernet, USB Host, USB Device driver
Camera	OV9650 Camera module support
ETC	SPI, UART, RTC, LED, GPIO Key driver
Software	2D/3D graphics accelerator Media player 9.0,Word and Internet Explorer 6.0. Supporting H264/H263/MPEG4/WMV9 hardware decoding. JPEG/JPG encoding and decoding .NET Compact Framework 3.5

Linux 2.6.24
Boot	U-boot 1.1.6 Boot Linux from SD card or NAND Flash Support updating image from SD card or USB
File System	ROM/CRAM/EXT2/EXT3/FAT/NFS/JFFS2/UBIFS Cramfs File System
LCD	Sharp 4.3” and 7” LCD including Touch Screen Driver
SD CARD	MMD/SD driver
Audio	AC97 driver
LAN, USB	Ethernet, USB Host, USB Device, USB Keyboard and Mouse driver
Camera	OV9650 Camera module support
ETC	SPI, UART, RTC, LED, GPIO Key driver
Software	Qt/Embedded GUI(Support file browser, Media player ) Telnet server, telnet remote login FTP Client/server BOA web server

Android 1.5
Boot	U-boot 1.1.6 Boot Android from SD card or NAND Flash Support updating image from SD card or USB
File System	Yaffs2 (Androidfs-sdk-m5-rc15)
LCD	Sharp 4.3” and 7” LCD including Touch Screen Driver
Drivers	리눅스에서 지원하는 드라이버 안드로이드의 커널과 드라이버 모델은 리눅스 모델을 그대로 차용
Software	Android-1.5 cupcake GUI(Support file browser, Media player ) 기타 리눅스에서 지원하는 일반 소프트웨어

Ubuntu 9.04
Boot	U-boot 1.1.6 Boot Ubuntu from SD card or NAND Flash Support updating image from SD card or USB
File System	ROM/CRAM/EXT2/EXT3/FAT/NFS/JFFS2/UBIFS Cramfs File System
LCD	Sharp 4.3” and 7” LCD including Touch Screen Driver
Drivers	리눅스에서 지원하는 드라이버
Software	Lxde-ubuntu GUI(Support file browser, Media player ) 기타 리눅스에서 지원하는 일반 소프트웨어

DVD #1 Directory contents
Datasheet	개발보드에서 사용된 주요 부품에 대한 데이터시트
Linux	- android-1.5 cupcake 소스 - linux-2.6.24 - ubuntu-9.04 위 3개 OS 대한 커널소스 및 zimage, filesystem
Manual	영문 버전의 보드 사용자 매뉴얼, Linux 포팅 매뉴얼, CE 설치 가이드 및 포팅 매뉴얼, 애플리케이션 개발 예제 매뉴얼
Schemetec	- 회로도
WINCE6.0	CE 6.0 BSP 소스, CE OS 이미지, SDK, 예제 Application
WindowsTools	SDboot, 삼성 USB Bulk Driver, Activesync USB Driver Giveio 패러럴 플래쉬프로그래머, DNW

* Pin Definition

Pin	J1 Definition	J2 Definition	J3 Definition	J4 Definition
1	CAM_D5	CAM_D4	GND	TSYM（ADC4）
2	CAM_D6	CAM_D3	GND	TSYP（ADC5）
3	CAM_D7	CAM_D2	GND	TSXM（ADC6）
4	AC97_RSTn	CAM_D1	GND	TSXP（ADC7）
5	AC97_SDO	CAM_D0	GND	DAC_OUT0
6	AC97_SDI	CAM_CLK	GND	DAC_OUT1
7	AC97_SYNC	CAM_HREF	GND	GND
8	AC97_BITCLK	CAM_VSYNC	GND	GND
9	UART_RXD0	I2C0_SDA	GND	MMC0_D0
10	UART_TXD0	I2C0_SCL	GND	MMC0_D1
11	UART_CTSn0	CAM_PCLK	GND	MMC0_D2
12	UART_RTSn0	CAM_RSTn	GND	MMC0_D3
13	UART_RXD1	EBI_A0	GND	MMC0_CLK
14	UART_TXD1	EBI_A1	GND	MMC0_CMD
15	UART_CTSn1	EBI_A2	GND	MMC0_CDn（GPG6）
16	UART_RTSn1	EBI_A3	GND	MMC0_WPn（GPL13）
17	UART_RXD2	EBI_A4	GND	MMC1_D0
18	UART_TXD2	EBI_A5	GND	MMC1_D1
19	UART_RXD3	EBI_A6	GND	MMC1_D2
20	UART_TXD3	EBI_A7	GND	MMC1_D3
21	VDD_5V	EBI_A8	GND	MMC1_D4
22	VDD_RTC	EBI_A9	GND	MMC1_D5
23	VDD_5V	EBI_A10	GND	MMC1_D6
24	VDD_5V	EBI_A11	GND	MMC1_D7
25	VDD_5V	EBI_A12	nRSTOUT	MMC1_CLK
26	VDD_5V	EBI_A13	nBATF	MMC1_CMD
27	VDD_IO（3.3V）	EBI_A14	USBDP	MMC1_CDn（GPN6）
28	VDD_IO（3.3V）	EBI_A15	USBDN	MMC1_WPn（GPL14）
29	VDD_IO（3.3V）	EBI_A16	JTAG_TRSTn	GND
30	VDD_IO（3.3V）	EBI_A17	JTAG_TDI	ADC0
31	VDD_IO（3.3V）	EBI_A18	JTAG_TMS	ADC1
32	VDD_IO（3.3V）	EBI_A19	JTAG_TCK	ADC2
33	VDD_IO（3.3V）	NC	JTAG_RTCK	ADC3
34	VDD_IO（3.3V）	NC	JTAG_TDO	NC
35	VDD_IO（3.3V）	NC	DBGSEL	NC
36	VDD_IO（3.3V）	NC	GPM0/EINT23	GPN0/EINT0
37	VDD_IO（3.3V）	NC	GPM1/EINT24	GPN1/EINT1
38	VDD_IO（3.3V）	NC	GPM2/EINT25	GPN2/EINT2
39	VDD_IO（3.3V）	NC	GPM3/EINT26	GPN3/EINT3
40	VDD_IO（3.3V）	NC	PW1_TOUT/GPF15	GPN4/EINT4
41	GND	EBI_D0	CLKOUT/GPF14	GPN5/EINT5
42	GND	EBI_D1	GPE4	KEY_RESET
43	GND	EBI_D2	GPE0	OM0
44	GND	EBI_D3	GPE1	OM1
45	GND	EBI_D4	GPE2	OM2
46	GND	EBI_D5	GPE3	OM3
47	GND	EBI_D6	GPP0	OM4
48	OTG_ID	EBI_D7	GPP1	SELNAND
49	GND	EBI_D8	GPP8	KEY_ROW7/GPK15
50	OTG_DP	EBI_D9	GPP9	KEY_ROW6/GPK14
51	GND	EBI_D10	GPP10	KEY_ROW5/GPK13
52	OTG_DM	EBI_D11	GPP11	KEY_ROW4/GPK12
53	VBUS（USB）	EBI_D12	GPP12	KEY_ROW3/GPK11
54	VBUS（USB）	EBI_D13	GPP13	KEY_ROW2/GPK10
55	GND	EBI_D14	GPP14	KEY_ROW1/GPK9
56	GND	EBI_D15	GPQ2	KEY_ROW0/GPK8
57	GND	EBI_CSn0	GPQ3	KEY_COL7/GPK7
58	GND	EBI_CSn1	GPQ4	KEY_COL6/GPK6
59	GND	NC	GPQ5	KEY_COL5/GPK5
60	GND	EBI_CSn3	GPQ6	KEY_COL4/GPK4
61		EBI_CSn4	GPO4
62		EBI_CSn5	GPO5
63		EBI_Wen	GPM4/ENIT27
64		EBI_OEn	GPM5
65		EBI_BEn0	GPB4
66		EBI_BEn1	GPF13/PWM_ECLK
67		NAND_ALE	IRQ_LAN
68		NAND_CLE	GPN12/EINT12（iROM Boot）
69		NAND_Wen	GPN13/EINT13（iROM Boot）
70		NAND_Ren	GPN14/EINT14（iROM Boot）
71		NAND_RnB	GPN15/EINT15（iROM Boot）
72		NAND_WAITn	GPL8/EINT16
73		LCD_D0	GPL9/EINT17
74		LCD_D1	GPL10/EINT18
75		LCD_D2	GPL11/EINT19
76		LCD_D3	GPL12/EINT20
77		LCD_D4	GPK0
78		LCD_D5	GPK1
79		LCD_D6	GPK2
80		LCD_D7	GPK3
81		LCD_D8	USB_DET（GPN8/EINT8）
82		LCD_D9	GPN9/EINT9
83		LCD_D10	GPK4
84		LCD_D11	GPK5
85		LCD_D12	GPK6
86		LCD_D13	GPK7
87		LCD_D14	GPN10/EINT10
88		LCD_D15	GPN11/EINT11
89		LCD_D16	SPI0_CS
90		LCD_D17	SPI0_CLK
91		LCD_D18	SPI0_MISO
92		LCD_D19	SPI0_MOSI
93		LCD_D20	SPI1_CS
94		LCD_D21	SPI1_CLK
95		LCD_D22	SPI1_MISO
96		LCD_D23	SPI1_MOSI
97		LCD_HSYNC	KP_COL0/GPL0
98		LCD_VSYNC	KP_COL1/GPL1
99		LCD_VCLK	KP_COL2/GPL2
100		LCD_VDEN	KP_COL3/GPL3

4. 제품 구성
(1) One ARM11 SBC
(2) Two Manual, Source DVD
