ST-Link(ST 정품)

1. 제품명

ST-Link(ST 정품)



2. 제품소개
ST-Link는 ST Microelectronics의 STM8 and STM32microcontroller families의 모든 제품에 사용 가능한
in-circuit debugger and programmer 입니다. JTAG/SWD인터페이스를 이용해서 STM8 and STM32에
플래시 Write와 디버깅을 할 수 있습니다.

제품 구매 : http://www.toolparts.co.kr

3. 제품특징
* 5 V power supplied by USB connector.
* USB 2.0 full speed interface compatible.
* USB standard A to Mini-B cable provided.
* SWIM specific features:
  1.65 V to 5.5 V application voltage supported on SWIM interface.
  SWIM low speed and high speed modes supported.
  SWIM programming speed rate:
* 9.7 Kbytes/s in low speed,
* 12.8 Kbytes/s in high speed.
  SWIM cable for connection to an application with an ERNI standard connector
  vertical (ref: 284697 or 214017) or horizontal (ref: 214012).
  SWIM cable for connection to an application with pin headers or 2.54 mm pitch connector.
* JTAG/SWD specific features:
  3 V to 3.6 V application voltage supported on JTAG/SWD interface and 5Vtolerant inputs.
  JTAG/SWD cable provided for connection to a standard JTAG 20-pin pitch2.54 mm connector.
* Direct firmware update feature supported (DFU).
* Status LED which blinks during communication with PC.
* Operating temperature 0 to 50 °C.
* JTAG cable connection

Pin No	Name	ST-LINK Funciton	Target connection
1	TVCC	Target VCC	MCU VCC
2
3	TRST	GROUND	GND
4	UART-RX	Unused	GND or not connected
5	TDI	JTAG TDI	TDO
6	UART-TX	Unused	GND or not connected
7	TMS	JTAG TMS, SW IO	TMS, SWIO
8	BOOT0	Unused	GND or not connected
9	TCK	JTAG TCK, SW CLK	TCK, SWCLK
10	SWIM	Unused	GND or not connected
11	NC	not connected	not connected
12	GND	GROUND	GND
13	TDO	JTAG TDO	TDI
14	SWIM-RST	Unused	GND
15	RESET	RESET	RESET (optional)
16	KEY	not existing pin	not connected
17	NC	not connected	not connected
18	GND	GROUND	GND
19	VDD	VDD (3.3V)	not connected
20	GND	GROUND	GND

4. 지원하는 디버그 소프트웨어
(1) KEIL MDK, IAR Workbench

5. 메뉴얼
ST-Link 사용자 메뉴얼

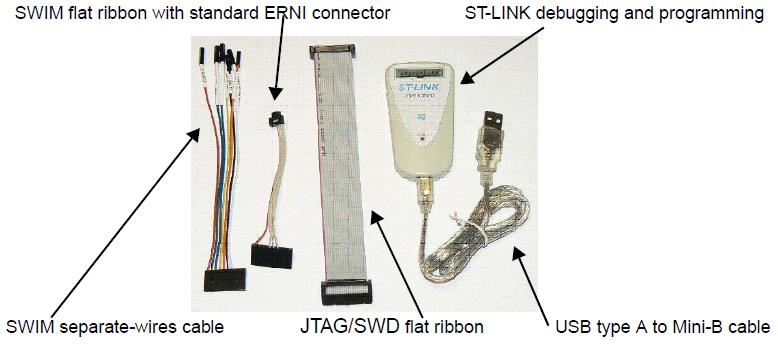

6. 제품 구성
(1) ST-Link 1Ea
(2) USB Cable 1Ea
(3) SWIM separate-wires cable 1Ea
(4) USB Driver/Software, CD

RLink Standard

1. 제품명

RLink Standard



2. 제품소개
RLink 는 STR7(ARM7), STR9(ARM9), uPSD(8051) and Cortex-M3(STM32)를 위한
In-Circuit Debugger & Programmer 입니다. Raisonance's Integrated Environment(RIDE) 환경에서 사용 가능 합니다.

제품 구매 : http://www.toolparts.co.kr

3. 제품특징
* Dynamically programmable: possible addition of new protocols without changing the hardware nor the firmware but only the software
* Up to 2 Mbit/s, from 3V to 5V
* Flexible software architecture (supports also various 8 bit cores)
* No power supply needed. RLink is powered through the USB connection
* Cost effective solution
* Full programming without any limitation
* Full debugging up to 32KB debugging

4. 메뉴얼
RLink 사용자 메뉴얼

5. 제품 구성
(1) RLink Standard 1Ea
(2) USB Cable 1Ea
(3) USB Driver/Software, CD
   The CD includes:
   * RKit-ARM (STR7, STR9 & STM32) software tools (GNU C Compiler, GNU assembler, GNU Linker and Raisonance Simulator/Debugger)
   * Ride7 (new Raisonance Integrated Development Environment) drives RLink and integrates the different software tools for STRx, STM32
   * RFlasher: stand-alone programming tool that drives RLink

J-Link EDU(Segger 정품)

1. 제품명

J-Link EDU(Segger 정품)



2. 제품소개
J-Link EDU제품은 판매를 위한 상업적인용도로 사용하지 않는다는 라이센스 하에서
J-LInk V8 제품과는 기능이 완벽하게 동일한 제품으로 개인용, 교육적인 목적으로만 사용한다는 조건으로
Segger사에서 새롭게 출시된 정품 에뮬레이터 입니다. IAR Workbench, Keil MDK 등에서 사용 가능 합니다.

제품 구매 : http://www.toolparts.co.kr

3. 제품특징
* Direct download into flash memory of most popular microcontrollers supported
* USB 2.0 interface
* Supported CPUs: Any ARM7/9/11, Cortex-A5/A8, Cortex-M0/M1/M3/M4, Cortex-R4
* Serial Wire Debug (SWD) support
* Serial Wire Viewer (SWV) support
* Automatic core recognition
* JTAG speed up to 12 MHz
* Download speed up to 720 Kbytes/second (ARM7 @ 50 MHz, 12MHz JTAG speed)
* Seamless integration into the IAR Embedded Workbench IDE
* No power supply required, powered through USB
* Support for adaptive clocking
* All JTAG signals can be monitored, target voltage can be measured
* Support for multiple devices
* Fully plug and play compatible
* Standard 20-pin JTAG connector
* Wide target voltage range: 1.2V - 3.3V, 5V tolerant
* USB and 20-pin ribbon cable included
* Memory viewer (J-Mem) included
* RDI interface available, which allows using J-Link with RDI compliant software
* Flash programming software (J-Flash) available
* Flash DLL available, which allows using flash functionality in custom applications
* Software Developer Kit (SDK) available
* Embedded Trace Buffer (ETB) support
* 14-pin JTAG adapter available
* Optical isolation adapter available
* Target power supply: J-Link can supply up to 300 mA to target with overload protection

General	Support OS	Microsoft Windows 2000 Microsoft Windows XP Microsoft Windows XP x64 Microsoft Windows 2003 Microsoft Windows 2003 x64 Microsoft Windows Vista Microsoft Windows Vista x64 Windows 7 Windows 7 x64
	Electromagnetic compatibility (EMC)	EN 55022, EN 55024
	Operating temperature	+5°C ... +60°C
	Storage temperature	20°C ... +65 °C
	Relative humidity (non-condensing)	Max. 90% rH
Mechanical	Size (without cables)	100mm x 53mm x 27mm
	Weight (without cables)	70g
Interfaces	USB interface	USB 2.0, full speed USB powered, Max. 50mA + Target Supply current
	Target interface	JTAG 20-pin (14-pin adapter available)

5. 지원하는 디버그 소프트웨어
(1) IAR Workbench, KEIL MDK
(2) 그밖의 RDI 인터페이스를 지원하는 모든 디버그 환경

6. 제품 구성
(1) J-Link EDU 1Ea
(2) USB Cable 1Ea
(3) USB Driver/Software, CD

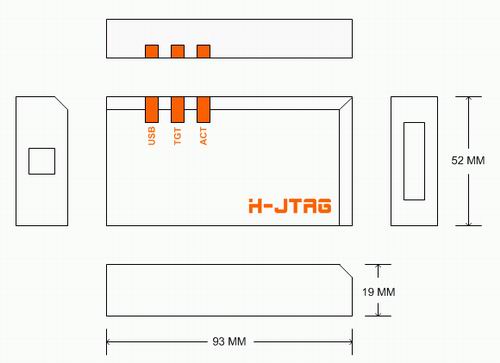

H-JTAG USB Standard

1. 제품명

H-JTAG USB Standard



2. 제품소개
H-JTAG USB 제품은 ARM Core(S3C2440, , XScale, Cortex-M3)등을 위한 디버깅 및 플래시
프로그램이 가능한 USB JTAG 에뮬레이터 제품 입니다. H-JTAG 의 사용법 및 성능은
MULTI-ICE 제품과 유사하며 SDT2.51, ADS1.2, KEIL RVDS, MDK and IAR(EWARM 5.11 이상) 등과 같은
대부분의 인기 있는 개발 환경에서 ARM7/ARM9/Cortex-M3 코어의 디버깅 및 플래시
프로그램을 할 수 있습니다

제품 구매 : http://www.toolparts.co.kr



3. 제품특징
(1) Support RDI 1.5.0 and 1.5.1
(2) Support ARM7, ARM9, ARM11, XSCALE and CORTEX-M3
(3) Support both THUMB and ARM instructions
(4) Support both Little-Endian, Big-Endian
(5) Support SEMIHOSTING
(6) Support 2000/XP/VISTA/Windows 7
(7) USB2.0 고속 인터페이스 및 USB전원 공급
(8) JTAG Clock : 10K ~ 15MHz
(9) JTAG 읽기 및 쓰기속도
    ARM7 : Read - 750KB/sec, Write - 550KB/sec
    ARM9 : Read - 750KB/sec, Write - 520KB/sec
    CORTEX-M3 : Read - 420KB/sec, Write - 340KB/sec

H-JTAG Edition		Light	Standard	Professional
Speed	Download	LPT x 5	750 KB/S	750 KB/S
	Upload		550 KB/S	550 KB/S
ARM Core	ARM-7	YES	YES	YES
	ARM-9	YES	YES	YES
	CORTEX-M3	YES	YES	YES
	XSCALE	NO	YES	YES
	ARM11	NO	NO	YES
	PXA3XX	NO	NO	YES
Support IDE		ADS1.2, RVDS, KEIL/MDK, IAR
Support OS		WIN2000 / XP / VISTA / WINDOWS 7

4. 지원디바이스

Samsung (ARM7/ARM9/Cortex-M3 Family)
S3C2410A, S3C2440A, S3C44B0X, S3C4510B

STMicroelectronics (ARM7/ARM9/Cortex-M3 Family)
STR710FZ1, STR710FZ2, STR711FR0, STR711FR1, STR711FR2,
STR712FR0, STR712FR1, STR712FR2, STR715FR0, STR730FZ1, STR730FZ2, STR731FV0, STR731FV1,
STR731FV2, STR735FZ1, STR735FZ2, STR736FV0, STR736FV1, STR750FL2, STR750FV0, STR750FV1,
STR750FV2, STR751FR0, STR751FR1, STR751FR2, STR752FR0, STR752FR1, STR752FR2, STR755FR0,
STR755FR1, STR755FR2, STR755FV0, STR755FV1, STR755FV2, STR910FM32, STR910FW32, STR911FM42,
STR911FM44, STR912FW42, STR912FW44, STR10XX, STM32F10xx

Analog Devices (ARM7/ARM9/Cortex-M3 Family)
ADuC7019, ADuC7020, ADuC7021, ADuC7022,
ADuC7024, ADuC7025, ADuC7026, ADuC7027, ADuC7032, ADuC7033, ADuC7128, ADuC7129

Atmel (ARM7/ARM9/Cortex-M3 Family)
AT91C140, AT91F40416, AT91F40816, AT91FR40162,
AT91FR4042, AT91FR4081, AT91M40400, AT91M40800, AT91M40807, AT91M42800A, AT91M43300,
AT91M55800A, AT91M63200, AT91R40008, AT91R40807, AT91RM3400, AT91RM9200, AT91SAM7A1,
AT91SAM7A2, AT91SAM7A3, AT91SAM7S128, AT91SAM7S256, AT91SAM7S32, AT91SAM7S64,
AT91SAM7SE256, AT91SAM7SE32, AT91SAM7SE512, AT91SAM7X128, AT91SAM7X256, AT91SAM7XC128,
AT91SAM7XC256, AT91SAM9260, AT91SAM9261

Freescale Semiconductor (ARM7/ARM9/Cortex-M3 Family)
MAC7101, MAC7104, MAC7105, MAC7106,
MAC7111, MAC7112, MAC7114, MAC7115, MAC7116, MAC7121, MAC7122, MAC7124, MAC7125, MAC7126,
MAC7131, MAC7134, MAC7135, MAC7136, MAC7141, MAC7142, MAC7144

Luminary Micro (ARM7/ARM9/Cortex-M3 Family)
LM3S101, LM3S102, LM3S301, LM3S310, LM3S315,
LM3S316, LM3S328, LM3S601, LM3S610, LM3S611, LM3S612, LM3S613, LM3S615, LM3S628, LM3S801,
LM3S811, LM3S812, LM3S815, LM3S828

NXP (founded by Philips) (ARM7/ARM9/Cortex-M3 Family)
LPC2101, LPC2102, LPC2103, LPC2104,
LPC2105, LPC2106, LPC2114, LPC2119, LPC2124, LPC2129, LPC2131, LPC2132, LPC2134, LPC2136,
LPC2138, LPC2141, LPC2142, LPC2144, LPC2146, LPC2148, LPC2194, LPC2210, LPC2212, LPC2214,
LPC2220, LPC2290, LPC2292, LPC2294, LPC2364, LPC2366, LPC2368, LPC2378, LPC2458, LPC2468,
LPC2880, LPC2888, LPC3180

OKI (ARM7/ARM9/Cortex-M3 Family)
ML674000, ML674001, ML674002, ML674003, ML675001, ML675002,ML675003, ML67Q4050, ML67Q4051, ML67Q4060, ML67Q4061, ML696201, ML69Q6203

Sharp (ARM7/ARM9/Cortex-M3 Family)
LH75400, LH75401, LH75410, LH75411

TI (ARM7/ARM9/Cortex-M3 Family)
TMS470R1A128, TMS470R1A256, TMS470R1A288, TMS470R1A384,
TMS470R1A64, TMS470R1B1M, TMS470R1B512, TMS470R1B768

5. 지원하는 디버그 소프트웨어
(1) IAR( Cortex-M3 코어는 5.11 이상에서 지원)
(2) ADS1.2, KEIL MDK, RVDS 2.0, RVDS 2.2, RVDS 3.0 이상
(3) 그밖의 RDI 인터페이스를 지원하는 모든 디버그 환경

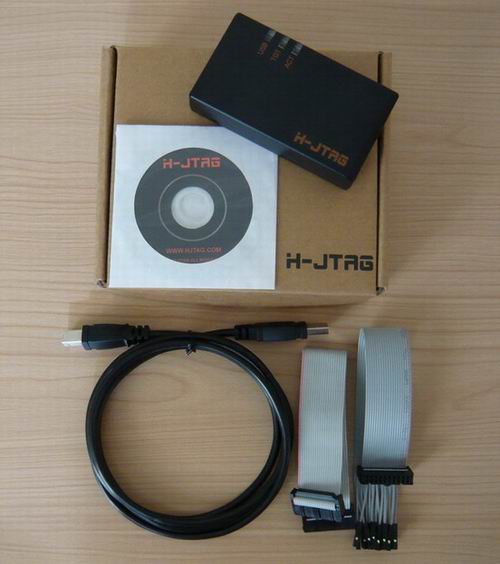

6. 제품 구성

(1) H-JTAG USB 1Ea
(2) USB Cable 1Ea
(3) JTAG 20Pin Cable, JTAG 20Pin 변환 케이블
(4) USB Driver/Software, CD

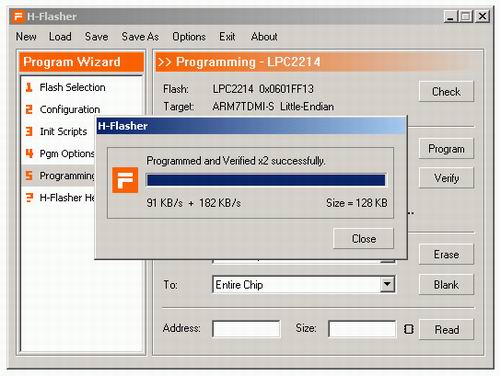

7. 디바이스 별 사용화면

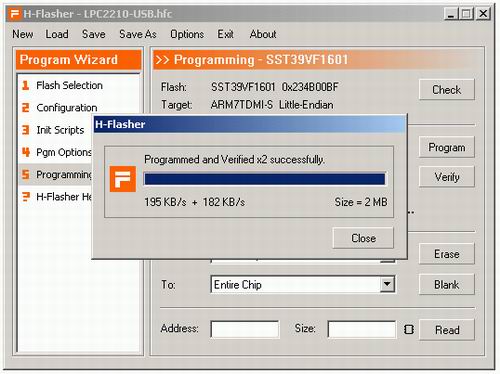

NXP LPC2210 + SST39VF1601



AT91SAM9260+SST39VF1601： AT91SAM9260 + SST39VF1601 :

H-JTAG USB Pro

1. 제품명

H-JTAG USB Pro



2. 제품소개
H-JTAG USB 제품은 ARM Core(S3C2440, S3C6410, XScale, Cortex-M3)등을 위한 디버깅 및 플래시
프로그램이 가능한 USB JTAG 에뮬레이터 제품 입니다. H-JTAG 의 사용법 및 성능은
MULTI-ICE 제품과 유사하며 SDT2.51, ADS1.2, KEIL RVDS, MDK and IAR(EWARM 5.11 이상) 등과 같은
대부분의 인기 있는 개발 환경에서 ARM7/ARM9/ARM11/Cortex-M3 코어의 디버깅 및 플래시
프로그램을 할 수 있습니다

제품 구매 : http://www.toolparts.co.kr



3. 제품특징
(1) Support RDI 1.5.0 and 1.5.1
(2) Support ARM7, ARM9, ARM11, XSCALE and CORTEX-M3
(3) Support both THUMB and ARM instructions
(4) Support both Little-Endian, Big-Endian
(5) Support SEMIHOSTING
(6) Support 2000/XP/VISTA/Windows 7
(7) USB2.0 고속 인터페이스 및 USB전원 공급
(8) JTAG Clock : 10K ~ 15MHz
(9) JTAG 읽기 및 쓰기속도
    ARM7 : Read - 750KB/sec, Write - 550KB/sec
    ARM9 : Read - 750KB/sec, Write - 520KB/sec
    CORTEX-M3 : Read - 420KB/sec, Write - 340KB/sec

H-JTAG Edition		Light	Standard	Professional
Speed	Download	LPT x 5	750 KB/S	750 KB/S
	Upload		550 KB/S	550 KB/S
ARM Core	ARM-7	YES	YES	YES
	ARM-9	YES	YES	YES
	CORTEX-M3	YES	YES	YES
	XSCALE	NO	YES	YES
	ARM11	NO	NO	YES
	PXA3XX	NO	NO	YES
Support IDE		ADS1.2, RVDS, KEIL/MDK, IAR
Support OS		WIN2000 / XP / VISTA / WINDOWS 7

4. 지원디바이스

Samsung (ARM7/ARM9/Cortex-M3 Family)
S3C2410A, S3C2440A, S3C44B0X, S3C4510B, S3C6400, S3C641X

XScale (ARM7/ARM9/ARM11 Family)
PXA210, PXA255, PXA270, PXA3XX

STMicroelectronics (ARM7/ARM9/Cortex-M3 Family)
STR710FZ1, STR710FZ2, STR711FR0, STR711FR1, STR711FR2,
STR712FR0, STR712FR1, STR712FR2, STR715FR0, STR730FZ1, STR730FZ2, STR731FV0, STR731FV1,
STR731FV2, STR735FZ1, STR735FZ2, STR736FV0, STR736FV1, STR750FL2, STR750FV0, STR750FV1,
STR750FV2, STR751FR0, STR751FR1, STR751FR2, STR752FR0, STR752FR1, STR752FR2, STR755FR0,
STR755FR1, STR755FR2, STR755FV0, STR755FV1, STR755FV2, STR910FM32, STR910FW32, STR911FM42,
STR911FM44, STR912FW42, STR912FW44, STR10XX, STM32F10xx

Analog Devices (ARM7/ARM9/Cortex-M3 Family)
ADuC7019, ADuC7020, ADuC7021, ADuC7022,
ADuC7024, ADuC7025, ADuC7026, ADuC7027, ADuC7032, ADuC7033, ADuC7128, ADuC7129

Atmel (ARM7/ARM9/Cortex-M3 Family)
AT91C140, AT91F40416, AT91F40816, AT91FR40162,
AT91FR4042, AT91FR4081, AT91M40400, AT91M40800, AT91M40807, AT91M42800A, AT91M43300,
AT91M55800A, AT91M63200, AT91R40008, AT91R40807, AT91RM3400, AT91RM9200, AT91SAM7A1,
AT91SAM7A2, AT91SAM7A3, AT91SAM7S128, AT91SAM7S256, AT91SAM7S32, AT91SAM7S64,
AT91SAM7SE256, AT91SAM7SE32, AT91SAM7SE512, AT91SAM7X128, AT91SAM7X256, AT91SAM7XC128,
AT91SAM7XC256, AT91SAM9260, AT91SAM9261

Freescale Semiconductor (ARM7/ARM9/Cortex-M3 Family)
MAC7101, MAC7104, MAC7105, MAC7106,
MAC7111, MAC7112, MAC7114, MAC7115, MAC7116, MAC7121, MAC7122, MAC7124, MAC7125, MAC7126,
MAC7131, MAC7134, MAC7135, MAC7136, MAC7141, MAC7142, MAC7144

Luminary Micro (ARM7/ARM9/Cortex-M3 Family)
LM3S101, LM3S102, LM3S301, LM3S310, LM3S315,
LM3S316, LM3S328, LM3S601, LM3S610, LM3S611, LM3S612, LM3S613, LM3S615, LM3S628, LM3S801,
LM3S811, LM3S812, LM3S815, LM3S828

NXP (founded by Philips) (ARM7/ARM9/Cortex-M3 Family)
LPC2101, LPC2102, LPC2103, LPC2104,
LPC2105, LPC2106, LPC2114, LPC2119, LPC2124, LPC2129, LPC2131, LPC2132, LPC2134, LPC2136,
LPC2138, LPC2141, LPC2142, LPC2144, LPC2146, LPC2148, LPC2194, LPC2210, LPC2212, LPC2214,
LPC2220, LPC2290, LPC2292, LPC2294, LPC2364, LPC2366, LPC2368, LPC2378, LPC2458, LPC2468,
LPC2880, LPC2888, LPC3180

OKI (ARM7/ARM9/Cortex-M3 Family)
ML674000, ML674001, ML674002, ML674003, ML675001, ML675002,ML675003, ML67Q4050, ML67Q4051, ML67Q4060, ML67Q4061, ML696201, ML69Q6203

Sharp (ARM7/ARM9/Cortex-M3 Family)
LH75400, LH75401, LH75410, LH75411

TI (ARM7/ARM9/Cortex-M3 Family)
TMS470R1A128, TMS470R1A256, TMS470R1A288, TMS470R1A384,
TMS470R1A64, TMS470R1B1M, TMS470R1B512, TMS470R1B768

5. 지원하는 디버그 소프트웨어
(1) IAR( Cortex-M3 코어는 5.11 이상에서 지원)
(2) ADS1.2, KEIL MDK, RVDS 2.0, RVDS 2.2, RVDS 3.0 이상
(3) 그밖의 RDI 인터페이스를 지원하는 모든 디버그 환경

6. 제품 구성

(1) H-JTAG USB 1Ea
(2) USB Cable 1Ea
(3) JTAG 20Pin Cable, JTAG 20Pin 변환 케이블
(4) USB Driver/Software, CD

7. 디바이스 별 사용화면

NXP LPC2210 + SST39VF1601



AT91SAM9260+SST39VF1601： AT91SAM9260 + SST39VF1601 :

H-JTAG USB Light

1. 제품명

H-JTAG USB Light



2. 제품소개
H-JTAG USB 제품은 ARM Core(S3C2440, XScale, Cortex-M3)등을 위한 디버깅 및 플래시
프로그램이 가능한 USB JTAG 에뮬레이터 제품 입니다. H-JTAG 의 사용법 및 성능은
MULTI-ICE 제품과 유사하며 SDT2.51, ADS1.2, KEIL RVDS, MDK and IAR(EWARM 5.11 이상) 등과 같은
대부분의 인기 있는 개발 환경에서 ARM7/ARM9/Cortex-M3 코어의 디버깅 및 플래시
프로그램을 할 수 있습니다

제품 구매 : http://www.toolparts.co.kr



3. 제품특징
(1) Support RDI 1.5.0 and 1.5.1
(2) Support ARM7, ARM9, ARM11, XSCALE and CORTEX-M3
(3) Support both THUMB and ARM instructions
(4) Support both Little-Endian, Big-Endian
(5) Support SEMIHOSTING
(6) Support 2000/XP/VISTA/Windows 7
(7) USB2.0 고속 인터페이스 및 USB전원 공급
(8) JTAG Clock : 10K ~ 15MHz
(9) JTAG 읽기 및 쓰기속도
    ARM7 : Read - 750KB/sec, Write - 550KB/sec
    ARM9 : Read - 750KB/sec, Write - 520KB/sec
    CORTEX-M3 : Read - 420KB/sec, Write - 340KB/sec

H-JTAG Edition		Light	Standard	Professional
Speed	Download	LPT x 5	750 KB/S	750 KB/S
	Upload		550 KB/S	550 KB/S
ARM Core	ARM-7	YES	YES	YES
	ARM-9	YES	YES	YES
	CORTEX-M3	YES	YES	YES
	XSCALE	NO	YES	YES
	ARM11	NO	NO	YES
	PXA3XX	NO	NO	YES
Support IDE		ADS1.2, RVDS, KEIL/MDK, IAR
Support OS		WIN2000 / XP / VISTA / WINDOWS 7

4. 지원디바이스

Samsung (ARM7/ARM9/Cortex-M3 Family)
S3C2410A, S3C2440A, S3C44B0X, S3C4510B

STMicroelectronics (ARM7/ARM9/Cortex-M3 Family)
STR710FZ1, STR710FZ2, STR711FR0, STR711FR1, STR711FR2,
STR712FR0, STR712FR1, STR712FR2, STR715FR0, STR730FZ1, STR730FZ2, STR731FV0, STR731FV1,
STR731FV2, STR735FZ1, STR735FZ2, STR736FV0, STR736FV1, STR750FL2, STR750FV0, STR750FV1,
STR750FV2, STR751FR0, STR751FR1, STR751FR2, STR752FR0, STR752FR1, STR752FR2, STR755FR0,
STR755FR1, STR755FR2, STR755FV0, STR755FV1, STR755FV2, STR910FM32, STR910FW32, STR911FM42,
STR911FM44, STR912FW42, STR912FW44, STR10XX, STM32F10xx

Analog Devices (ARM7/ARM9/Cortex-M3 Family)
ADuC7019, ADuC7020, ADuC7021, ADuC7022,
ADuC7024, ADuC7025, ADuC7026, ADuC7027, ADuC7032, ADuC7033, ADuC7128, ADuC7129

Atmel (ARM7/ARM9/Cortex-M3 Family)
AT91C140, AT91F40416, AT91F40816, AT91FR40162,
AT91FR4042, AT91FR4081, AT91M40400, AT91M40800, AT91M40807, AT91M42800A, AT91M43300,
AT91M55800A, AT91M63200, AT91R40008, AT91R40807, AT91RM3400, AT91RM9200, AT91SAM7A1,
AT91SAM7A2, AT91SAM7A3, AT91SAM7S128, AT91SAM7S256, AT91SAM7S32, AT91SAM7S64,
AT91SAM7SE256, AT91SAM7SE32, AT91SAM7SE512, AT91SAM7X128, AT91SAM7X256, AT91SAM7XC128,
AT91SAM7XC256, AT91SAM9260, AT91SAM9261

Freescale Semiconductor (ARM7/ARM9/Cortex-M3 Family)
MAC7101, MAC7104, MAC7105, MAC7106,
MAC7111, MAC7112, MAC7114, MAC7115, MAC7116, MAC7121, MAC7122, MAC7124, MAC7125, MAC7126,
MAC7131, MAC7134, MAC7135, MAC7136, MAC7141, MAC7142, MAC7144

Luminary Micro (ARM7/ARM9/Cortex-M3 Family)
LM3S101, LM3S102, LM3S301, LM3S310, LM3S315,
LM3S316, LM3S328, LM3S601, LM3S610, LM3S611, LM3S612, LM3S613, LM3S615, LM3S628, LM3S801,
LM3S811, LM3S812, LM3S815, LM3S828

NXP (founded by Philips) (ARM7/ARM9/Cortex-M3 Family)
LPC2101, LPC2102, LPC2103, LPC2104,
LPC2105, LPC2106, LPC2114, LPC2119, LPC2124, LPC2129, LPC2131, LPC2132, LPC2134, LPC2136,
LPC2138, LPC2141, LPC2142, LPC2144, LPC2146, LPC2148, LPC2194, LPC2210, LPC2212, LPC2214,
LPC2220, LPC2290, LPC2292, LPC2294, LPC2364, LPC2366, LPC2368, LPC2378, LPC2458, LPC2468,
LPC2880, LPC2888, LPC3180

OKI (ARM7/ARM9/Cortex-M3 Family)
ML674000, ML674001, ML674002, ML674003, ML675001, ML675002,ML675003, ML67Q4050, ML67Q4051, ML67Q4060, ML67Q4061, ML696201, ML69Q6203

Sharp (ARM7/ARM9/Cortex-M3 Family)
LH75400, LH75401, LH75410, LH75411

TI (ARM7/ARM9/Cortex-M3 Family)
TMS470R1A128, TMS470R1A256, TMS470R1A288, TMS470R1A384,
TMS470R1A64, TMS470R1B1M, TMS470R1B512, TMS470R1B768

5. 지원하는 디버그 소프트웨어
(1) IAR( Cortex-M3 코어는 5.11 이상에서 지원)
(2) ADS1.2, KEIL MDK, RVDS 2.0, RVDS 2.2, RVDS 3.0 이상
(3) 그밖의 RDI 인터페이스를 지원하는 모든 디버그 환경

6. 제품 구성

(1) H-JTAG USB 1Ea
(2) USB Cable 1Ea
(3) JTAG 20Pin Cable, JTAG 20Pin 변환 케이블
(4) USB Driver/Software, CD

7. 디바이스 별 사용화면

NXP LPC2210 + SST39VF1601



AT91SAM9260+SST39VF1601： AT91SAM9260 + SST39VF1601 :

Virtual Oscilloscope DSO-5200A USB

1. 제품명

Virtual Oscilloscope DSO-5200A USB



2. 제품소개
DSO5200A는 PC와 USB2.0 사양으로 연결하여 뛰어난 성능과 경제적인 디지털 오실로스코프 입니다.
스코프 기능뿐만 아니라 Spectrum analyzer 기능을 기본으로 제공하고 있어 실습교육, 제품생산,
개발분야 등 다양한 분야에서 쉽게 사용 할 수 있습니다.

제품 구매 : http://www.toolparts.co.kr

3. 제품사양

Hardware Features - Scope
Maximum sampling rate/ Realtime sampling	250MS/s
Bandwidth	200MHZ(-3Db)
Single shot bandwidth	200MHZ
Buffer size	10K ~ 512KB/Channel
Voltage Range	10mV ~ 5V/div @ 1 probe
	100mV ~ 50V/div @ 10 probe
	1V ~ 500V/div @ 100 probe
	10V ~ 5000V/div @ 1000 probe
Channel	2 Channels
Power	No external source required
	Bus-powered from USB1.7W)
Interface	Universal Serial BUS (USB 2.0 High speed)
Impedance	1MΩ 25pF
Coupling	AC/DC/GND
Gain range	10mV-5V, 9Steps
DC accuracy	±3%
Time-base range	4ns/div ~ 1h/div (1-2-4 sequence)
Vertical adjustable	Yes
Input protection	35Vpk(DC + peak AC; Without external attenuation)
X-Y	Yes
Auto-set	Yes (30Hz to 200MHz)
EXT. input	Yes
Stability	0.03 div increments
Trigger Mode	Auto, Normal and Single
Trigger Level	+/-4 division
Trigger Slope	+/-
Trigger level adjustable	Yes
Trigger Type	Rising edge, falling edge
Measurements	Vp-p, Vmax, Vmin, Vmeans, Vrms, Vamp, Vhigh, Vlow, positive overshoot, negative overshoot, cycle mean, cycle rms, period, frequency, positive pulse width, negative pulse width, rise time (10% ~ 90%) fall time (10% ~ 90%), positive duty cycle, negative duty cycle
Trigger Source	CH1, CH2, EXT
Pre/Post trigger	0-100%
Sampling selection	Yes
Waveform Display	port/line, waveform average, persistence, intensity
Network	Open/Close
Vertical mode	CH1, CH2, Dual, ADD
Cursor measurement	Time/frequency difference, voltage difference
File Management	Image save: .BMP, .JPG
	Data Save: .dso
	OLE (Object Linking and Embedding) automation: Data generation for Microsoft excel

Hardware Features - Scope
Channel	2 Channels
Math	Addition, subtraction, multiplication, division.
FFT	Rectangular, Hanning, Hamming, Blackman Window
Bandwidth	200MHz
Cursor	Frequency, Voltage
Data Samples	10K-512K/Channel
Accessories	S/W CD, 2*probes, manual, USB cord

4. 제품 특징









(1) High performance,250MS/s real-time sampling, 200MHz Bandwidth.
(2) One computer can connect many DSOs; extending channel number is done easily.
(3) Dimensions (mm):190(L) x100(W) x35(H), be carried easily.
(4) USB2.0 interface, no external power source required, easy to use.
(5) Operating System: Windows98, Windows Me, Windows NT, Windows 2000, Windows XP ,VISTA
(6) 23 measurement functions, PASS/FAIL Check, be suitable for technical application.
(7) Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
(8) Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
(9) Calibration. Signal output: 1kHz, VP-P: 2V.
(10) Labview, VB, VC, Delphi, C++Builder Second Design instance

5. 제품 구성
(1) One DSO5200A
(2) Two Probe
(3) One USB cable (AB Type )
(4) One Software CD-ROM

Virtual Oscilloscope DSO-2250 USB

1. 제품명

Virtual Oscilloscope DSO-2250 USB



2. 제품소개
DSO2250은 PC와 USB2.0 사양으로 연결하여 뛰어난 성능과 경제적인 디지털 오실로스코프 입니다.
스코프 기능뿐만 아니라 Spectrum analyzer 기능을 기본으로 제공하고 있어 실습교육, 제품생산,
개발분야 등 다양한 분야에서 쉽게 사용 할 수 있습니다.

제품 구매 : http://www.toolparts.co.kr

3. 제품사양

Hardware Features - Scope
Maximum sampling rate/ Realtime sampling	250MS/s
Bandwidth	100MHZ(-3Db)
Single shot bandwidth	100MHZ
Buffer size	10K ~ 512KB/Channel
Voltage Range	10mV ~ 5V/div @ 1 probe
	100mV ~ 50V/div @ 10 probe
	1V ~ 500V/div @ 100 probe
	10V ~ 5000V/div @ 1000 probe
Channel	2 Channels
Power	No external source required
	Bus-powered from USB1.7W)
Interface	Universal Serial BUS (USB 2.0 High speed)
Impedance	1MΩ 25pF
Coupling	AC/DC/GND
Gain range	10mV-5V, 9Steps
DC accuracy	±3%
Time-base range	4ns/div ~ 1h/div (1-2-4 sequence)
Vertical adjustable	Yes
Input protection	35Vpk(DC + peak AC; Without external attenuation)
X-Y	Yes
Auto-set	Yes (30Hz to 100MHz)
EXT. input	Yes
Stability	0.03 div increments
Trigger Mode	Auto, Normal and Single
Trigger Level	+/-4 division
Trigger Slope	+/-
Trigger level adjustable	Yes
Trigger Type	Rising edge, falling edge
Measurements	Vp-p, Vmax, Vmin, Vmeans, Vrms, Vamp, Vhigh, Vlow, positive overshoot, negative overshoot, cycle mean, cycle rms, period, frequency, positive pulse width, negative pulse width, rise time (10% ~ 90%) fall time (10% ~ 90%), positive duty cycle, negative duty cycle
Trigger Source	CH1, CH2, EXT
Pre/Post trigger	0-100%
Sampling selection	Yes
Waveform Display	port/line, waveform average, persistence, intensity
Network	Open/Close
Vertical mode	CH1, CH2, Dual, ADD
Cursor measurement	Time/frequency difference, voltage difference
File Management	Image save: .BMP, .JPG
	Data Save: .dso
	OLE (Object Linking and Embedding) automation: Data generation for Microsoft excel

Hardware Features - Scope
Channel	2 Channels
Math	Addition, subtraction, multiplication, division.
FFT	Rectangular, Hanning, Hamming, Blackman Window
Bandwidth	100MHz
Cursor	Frequency, Voltage
Data Samples	10K-512K/Channel
Accessories	S/W CD, 2*probes, manual, USB cord

4. 제품 특징

(1) USB2.0 interface, no external power source required, easy to use.
(2) Be suitable for notebook computer，product line maintenance，be used easily onc vfdgghe41c vfdgghe41business.
(3) Dimensions (mm):190(L) x100(W) x35(H), be carried easily.
(4) High performance, 100MS/s real-time sampling, 40MHz Bandwidth.
(5) Operating System: Windows98, Windows Me, Windows NT, Windows 2000, Windows XP ,VISTA
(6) 23 measurement functions, PASS/FAIL Check, be suitable for technical application.
(7) Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
(8) Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
(9) FFT
(10) One computer can connect many DSO, extend channel easily.
(11) Labview, VB, VC, Delphi, C++Builder Second Design instance.

5. 제품 구성
(1) One DSO2250
(2) Two Probe
(3) One USB cable (AB Type )
(4) One Software CD-ROM

Virtual Oscilloscope DSO-2150 USB

1. 제품명

Virtual Oscilloscope DSO-2150 USB



2. 제품소개
DSO2150은 PC와 USB2.0 사양으로 연결하여 뛰어난 성능과 경제적인 디지털 오실로스코프 입니다.
스코프 기능뿐만 아니라 Spectrum analyzer 기능을 기본으로 제공하고 있어 실습교육, 제품생산,
개발분야 등 다양한 분야에서 쉽게 사용 할 수 있습니다.

제품 구매 : http://www.toolparts.co.kr

3. 제품사양

Hardware Features - Scope
Maximum sampling rate/ Realtime sampling	150MS/s
Bandwidth	60MHZ(-3Db)
Single shot bandwidth	60MHZ
Buffer size	10K ~ 32KB/Channel
Voltage Range	10mV ~ 5V/div @ 1 probe
	100mV ~ 50V/div @ 10 probe
	1V ~ 500V/div @ 100 probe
	10V ~ 5000V/div @ 1000 probe
Channel	2 Channels
Power	No external source required
	Bus-powered from USB1.7W)
Interface	Universal Serial BUS (USB 2.0 High speed)
Impedance	1MΩ 25pF
Coupling	AC/DC/GND
Gain range	10mV-5V, 9Steps
DC accuracy	±3%
Time-base range	4ns/div- 1h/div(4ns,10ns,20ns,40ns,100ns,200ns,400ns, 1us,2us,4us,10us,20us,40us,100us, 200us,400us,1ms,2ms,4ms,10ms,20ms,40ms,100ms,200ms,400ms, 1s,2s,4s,10s,20s,40s, 10m,20m,40m,1h/div 1-2-4 sequence)
Vertical adjustable	Yes
Input protection	35Vpk(DC + peak AC; Without external attenuation)
X-Y	Yes
Auto-set	Yes (30Hz to 60MHz)
EXT. input	Yes
Stability	0.03 div increments
Trigger Mode	Auto, Normal and Single
Trigger Level	+/-4 division
Trigger Slope	+/-
Trigger level adjustable	Yes
Trigger Type	Rising edge, falling edge
Measurements	Vp-p, Vmax, Vmin, Vmeans, Vrms, Vamp, Vhigh, Vlow, positive overshoot, negative overshoot, cycle mean, cycle rms, period, frequency, positive pulse width, negative pulse width, rise time (10% ~ 90%) fall time (10% ~ 90%), positive duty cycle, negative duty cycle
Trigger Source	CH1, CH2, EXT
Pre/Post trigger	0-100%
Sampling selection	Yes
Waveform Display	port/line, waveform average, persistence, intensity
Network	Open/Close
Vertical mode	CH1, CH2, Dual, ADD
Cursor measurement	Time/frequency difference, voltage difference
File Management	Image save: .BMP, .JPG
	Data Save: .dso
	OLE (Object Linking and Embedding) automation: Data generation for Microsoft excel

Hardware Features - Scope
Channel	2 Channels
Math	Addition, subtraction, multiplication, division.
FFT	Rectangular, Hanning, Hamming, Blackman Window
Cursor	Frequency, Voltage
Accessories	S/W CD, 2*probes, manual, USB cord

4. 제품 특징

(1) USB2.0 interface, no external power source required, easy to use.
(2) Be suitable for notebook computer，product line maintenance，be used easily on business.
(3) Dimensions (mm):190(L) x100(W) x35(H), be carried easily.
(4) High performance, 150MS/s real-time sampling, 60MHz Bandwidth.
(5) Operating System: Windows98, Windows Me, Windows NT, Windows 2000, Windows XP ,VISTA
(6) 23 measurement functions, PASS/FAIL Check, be suitable for technical application.
(7) Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
(8) Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
(9) FFT
(10) One computer can connect many DSO, extend channel easily.
(11) Labiew, VB, VC, Delphi, C++Builder Second Design instance.

5. 제품 구성
(1) One DSO2150
(2) Two Probe
(3) One USB cable (AB Type )
(4) One Software CD-ROM
