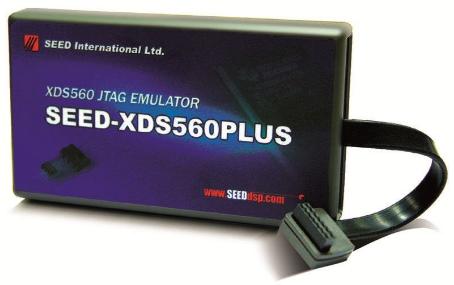

XDS560 PLUS

1. 제품명

XDS560 PLUS



2. 제품소개
TI사의 LF24XX/F28XX/C5000/C6000/C64XX/DM64X/DM270, DM320, OMAP, Davinci series 에서
사용가능한 JTAG 에뮬레이터 입니다.

제품 구매 : http://www.toolparts.co.kr

3. 제품특징

* Features
(1) Support TMS320, TMS470 (ARM?), OMAP?, DaVinci
(2) USB bus-powered, no external power supply
(3) High-speed RTDX with data rates of over 2MB/sec
(4) Fully compact with TI XDS560 class emulator
(5) 10 times faster than XDS510 class emulator
(6) Auto-sensing voltage support TI device roadmap from 0.5V-5V
(7) Self-adaptive clock from 500K-35M

* System Environments
(1) Code Composer Studio IDE V2.2 and versions above
(2) Operating Systems: Windows 2000/ XP/ Vista
(3) 14 pin standard JTAG header
(4) USB2.0

* Supported TI Processors
(1) DaVinci:DM646x, DM644x, DM643x, DM3xx, DM64x
(2) OMAP:OMAP3, OMAPL
(3) C6000:DM64x, C67xx, C645x, C641x, C642x, C62xx
(4) C5000:VC55x,VC54x
(5) MCU:F28xx, LF24xx

* Warranty
(1) Hardware:1 year from the date of purchase
(2) Software: Free patch and driver download from www.seeddsp.com

* SEED사 정품으로 제품의 시리얼번호를 통해서 SEED사로 부터 기술지원을 받으실 수 있습니다.

4. 제품 구성
(1) SEED-XDS560PLUS Emulator
(2) USB2.0 Cable
(3) 14- 20 pin JTAG header adapter
(4) Installation CD-ROM
(5) Quick start guide
