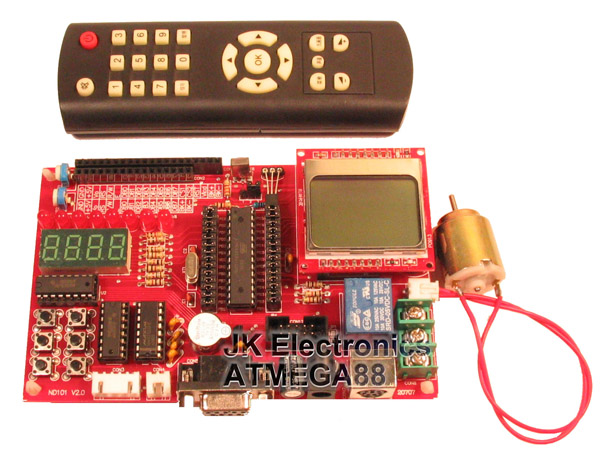

AVR ATMEGA88 개발보드 + LCD(48*84)

1. 제품명

AVR ATMEGA88 개발보드 + LCD(48*84)



2. 제품소개
ATMEGA88 AVR 을 Main MCU로 장착한 개발보드입니다.
실습에 필요한 다양한 인터페이스(PS2, IRDA등) 소자와 I/O를 장착하였고, 다양한 예제 소스(49개)를 제공합니다.
ISP Download 보드를 기본으로 제공하고 있어 별도의 장비구매를 하지 않고 사용 할 수 있습니다.
또한 Char LCD(48*84 matrix LCD)를 기본으로 제공 합니다

제품 구매 : http://www.toolparts.co.kr

3. 제품사양

Hardware Features
CPU	ATMEGA88V-10PU
LCD	NOKIA5110 dot matrix LCD(48*84)
IRDA	Integrated IR receiver
EEPROM	I2C-bus device 24C02, EEPROM data memory, 8kBit EEPROM
Temperature Sensor	12-bit precision temperature sensor DS18B20 Interface
UART	Max232, master and slave interfaces(With computer or other development board communication)
BUZZER	An active buzzer
Motor	One external 5V DC interface One stepping motor interface
ADC	One power-bit AD converter device
Relay	Relay normally open, normally closed contact interfaces
RTC	DS1302 clock chip and the back-up battery holder
PS/2	External PS/2 keyboard interface
LED	8 LEDs, 4 digital tube
Button	2×3 matrix of keys
Power	DC5V power interface, φ5.5×2.1
Board size(H*W)	85×135（mm）

* 주변 디바이스 인터페이스

MCU and IO jumper	Integrated IR receiver head	NOKIA5110 LCD Interface
Power Interface	RS232 serial interface	PS/2 keyboard interface
ISP Programming Interface	Stepping Motor Interface	DC Motor Interface
12864,1602 LCD Interface	DS18B20 Temperature Sensor	Relays and terminals and leads
Buzzer	Power-bit AD converter device	8 LEDs, 4 digital tube
IIC Interface memory 24C02	DS1302 clock chip and the back-up battery holder	2×3 matrix of keys

4. 제품 구성

Development board	ATMEGA88V-10PU
NOKIA5110 dot matrix LCD	84*48 dot matrix, blue backlight.
Power supply	INPUT:AV100-240V, 50/60Hz 150Ma, OUTPUT:5VDC 800mA
DC5V Motor	DC motor, power supply voltage 5V
Infrared remote control	By chip: HT6221, using two 7, Batteries (user-owned)
Serial data line	Development board with the computer through RS232 interface.
Crystal, Etc	3.579545 MHz, Jumper, USB cable, Flat cable 등
Manual CD	주요부품 Datasheet, 49 Examples, Manual(English), Schematic(PDF)

* WinAVR Examples
