AVR ATMEGA128 STK128_RED

1. 제품명

AVR ATMEGA128 STK128_RED



2. 제품소개

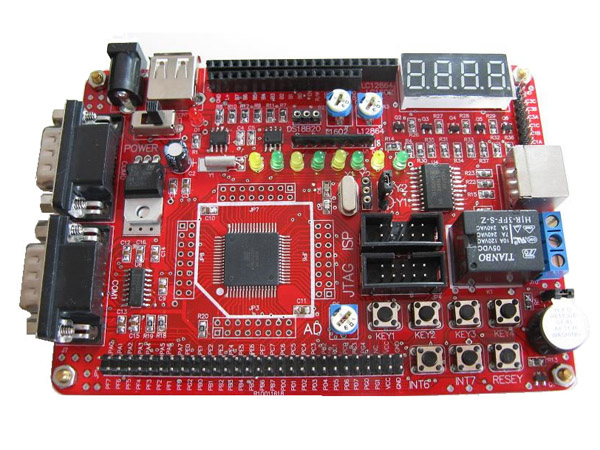

ATMEGA128 STK128_RED 개발보드는 ATMEGA128 AVR 을 Main MCU로 장착한 개발보드입니다.
실습에 필요한 다양한 인터페이스 소자와 I/O를 장착하였고, 다양한 예제 소스를 제공합니다.

제품 구매 : http://www.toolparts.co.kr

3. 제품사양

Hardware Features
CPU	ATMEGA128-16AU, AVR microcontroller main chip (16MHZ, 128K Flash, 4K SRAM, 4KByte EEPROM)
POWER	Dual power supply system, 3P DIP switches can select the power supply DC 9-12V external power supply or the computer's USB port power supply
Crystal	On-board crystal oscillator can be replaced(Factory welded 4MHZ crystal panel) Short run can be selected in the board crystal oscillator or external expansion
EEPROM	I2C-bus device 24C02, EEPROM data memory, 8kBit EEPROM
RTC	I2C real time clock chip DS1302, do calendar clock experiments
Temperature Sensor	12-bit precision temperature sensor DS18B20 Interface
LED	Data latch chip, 74HC573 cache drive water lamp, liquid crystal module, digital tubes 4-bit dynamic scanning LED digital tube, 8-bit LED light emitting diodes
UART	Max232, master and slave interfaces(With computer or other development board communication)
BUTTON	4 independent input buttons, a reset button. 2 interrupt buttons, can be interrupted experiments
BUZZER	An active buzzer
ADC	1 Way A/D converter input adjustable potentiometer
LCD	LCD1602(Char LCD), LCD12864(Graphic LCD) interfaces LCD1602 and LCD backlight adjustment LCD12864 control potentiometer LCD1602(Char LCD)는 옵션 사항 입니다. LCD12864(Graphic LCD)는 옵션 사항 입니다.
PS2	Standard 6-core PS2 keyboard interface, Do the keyboard identification experiments
RELAY	1 Road Industrial relay control circuit interface
JTAG/ISP	JTAG emulation and ISP download interfaces
GPIO	All IO port all leads, to facilitate expansion of experiments and testing

1. LCD1602 Char LCD와 온도, 시간 실습




2. LCD12864 그래픽 LCD 실습



3. 제품 매뉴얼 CD내용

Document	주요 부품의 데이터 시트
Schematic	개발보드 회로도
Example	31개의 예제코드(ICC AVR 프로젝트) GPIO, Timer, PWM, AD, UART, IIC, PS2, Char LCD, 그래픽 LCD 등 실습예제

4. 제품 구성
(1) One AVR128개발 Board
(2) One USB power cable
(3) One Cross-serial cable
(4) One 제품 매뉴얼 CD
