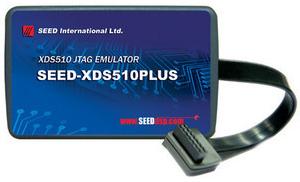

XDS510 PLUS

1. 제품명

XDS510 PLUS



2. 제품소개
TI사의 LF24xx, F28xx, VC33, C54xx, C55xx, C67xx, C64xx, DM64x, C643x, DM64xx, DM270, DM320, DM35x series 에서
사용가능한 JTAG 에뮬레이터 입니다.

제품 구매 : http://www.toolparts.co.kr

3. 제품특징

* Features & Benefits
(1) Compatible with Texas Instruments’ XDS510 emulator
(2) Support TMS320 and DaVinci Family
(3) USB bus-powered, no external power supply
(4) Auto-sensing voltage support TI device roadmap from 1.8V-5V
(5) LED for operating status indication

* System Requirements
(1) Code Composer Studio IDE V2.2/ 3.1/ 3.3/ C3X-4X
(2) Operating systems: Windows 2000/ XP/ Vista
(3) 14-pin standard JTAG header
(4) USB 2.0 and compatible with USB 1.x

* Supported TI Processors :
MSP 430, C2000, Stellaris, Sitara, C5000, OMAP.

* Warranty
1 year from the date of purchase

* SEED사 정품으로 제품의 시리얼번호를 통해서 SEED사로 부터 기술지원을 받으실 수 있습니다.

4. 제품 구성
(1) SEED-XDS510PLUS Emulator
(2) USB2.0 Cable
(3) Installation CD-ROM
